BLIPPING Control
›
Shift Change System Diagram
Shift Change System Diagram

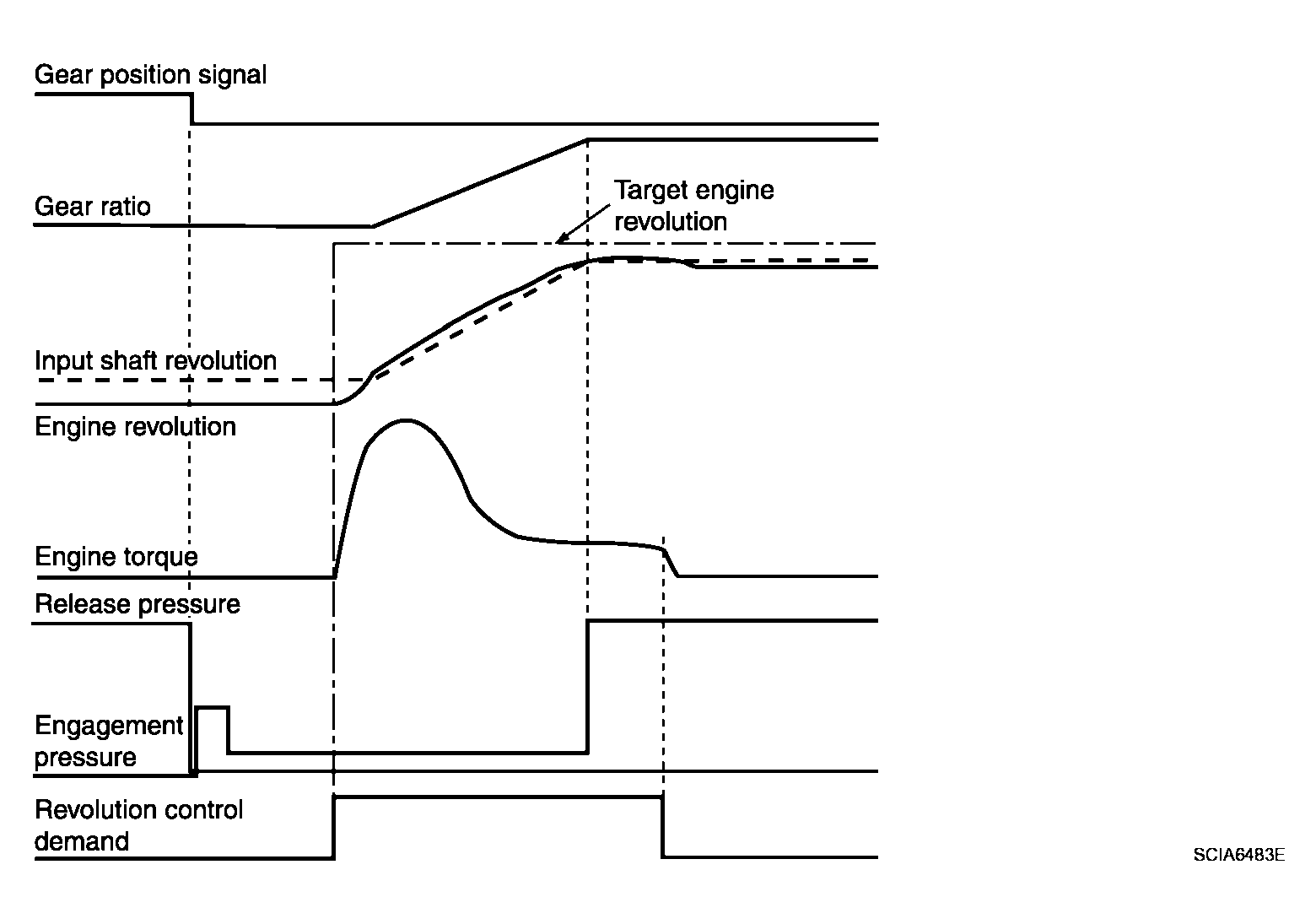

Fig 1: Shift Change System Diagram - Blipping Control
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
