AWD Control Unit

Controls distribution of drive power between rear-wheel drive (0: 100) and AWD (50: 50) conditions according to signals from sensors.
Self-diagnosis can be done with CONSULT-II.

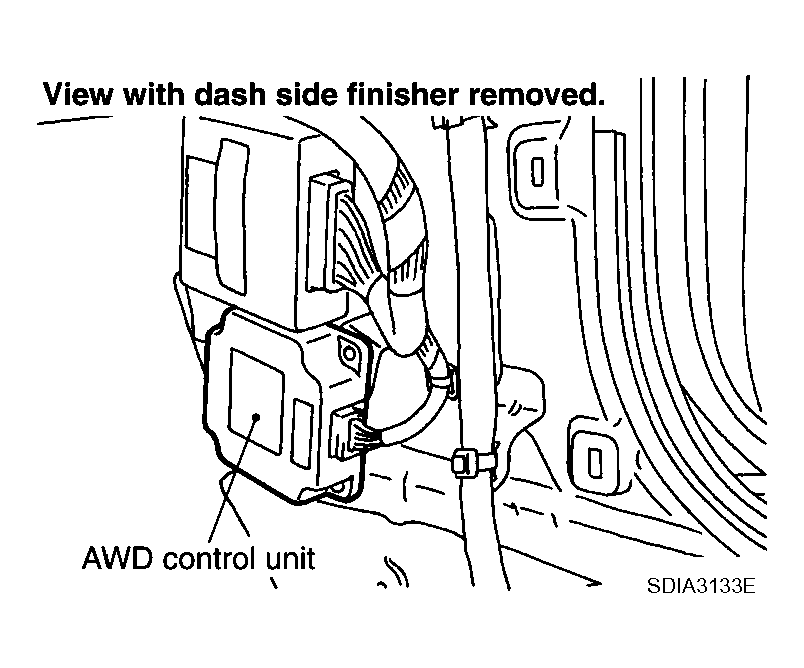

Fig 1: Identifying AWD Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.
