Removal and Installation of Intelligent Key Unit: Removal

1. Remove dash side finisher. Refer to "REMOVAL AND INSTALLATION ".
2. Disconnect intelligent key unit connector.
3. Remove intelligent key unit mounting nuts, and then remove intelligent key unit.

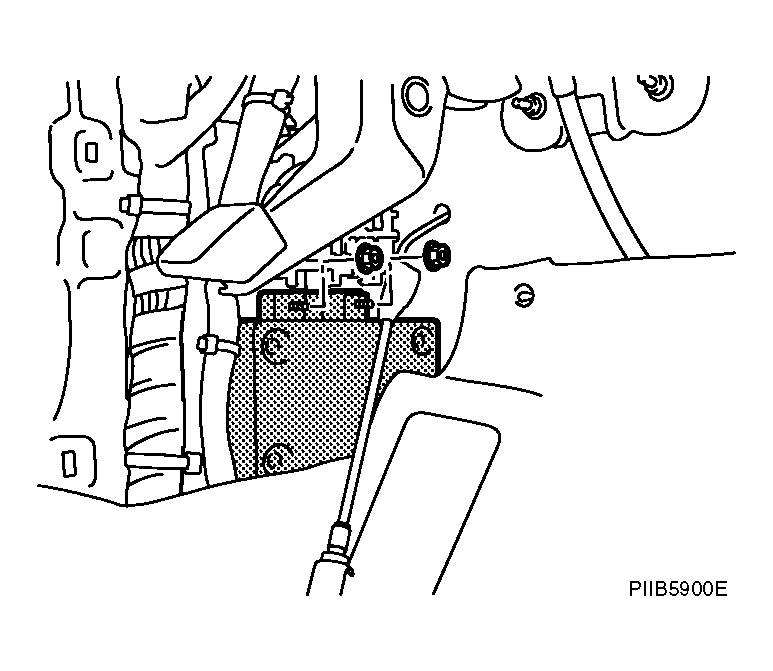

Fig 1: Identifying Intelligent Key Unit Mounting Nuts

Courtesy of NISSAN MOTOR CO., U.S.A.
