ICC Sensor

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

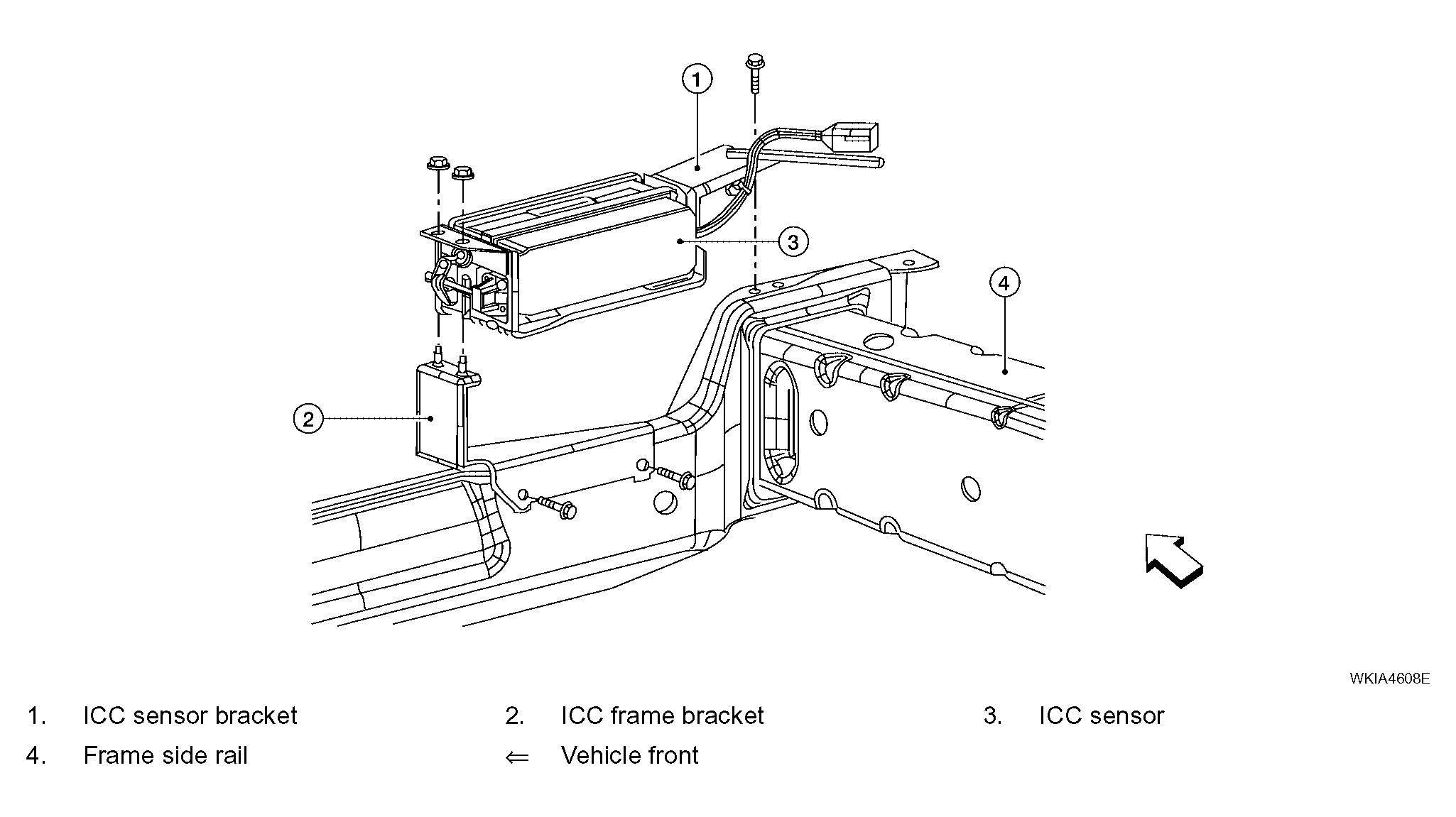

Fig 1: Identifying ICC Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Perform the laser beam aiming procedure every time the ICC sensor is removed or installed. Refer to "LASER BEAM AIMING ADJUSTMENT ".
