HOODLEDGE
Replacement Operations: HOODLEDGE

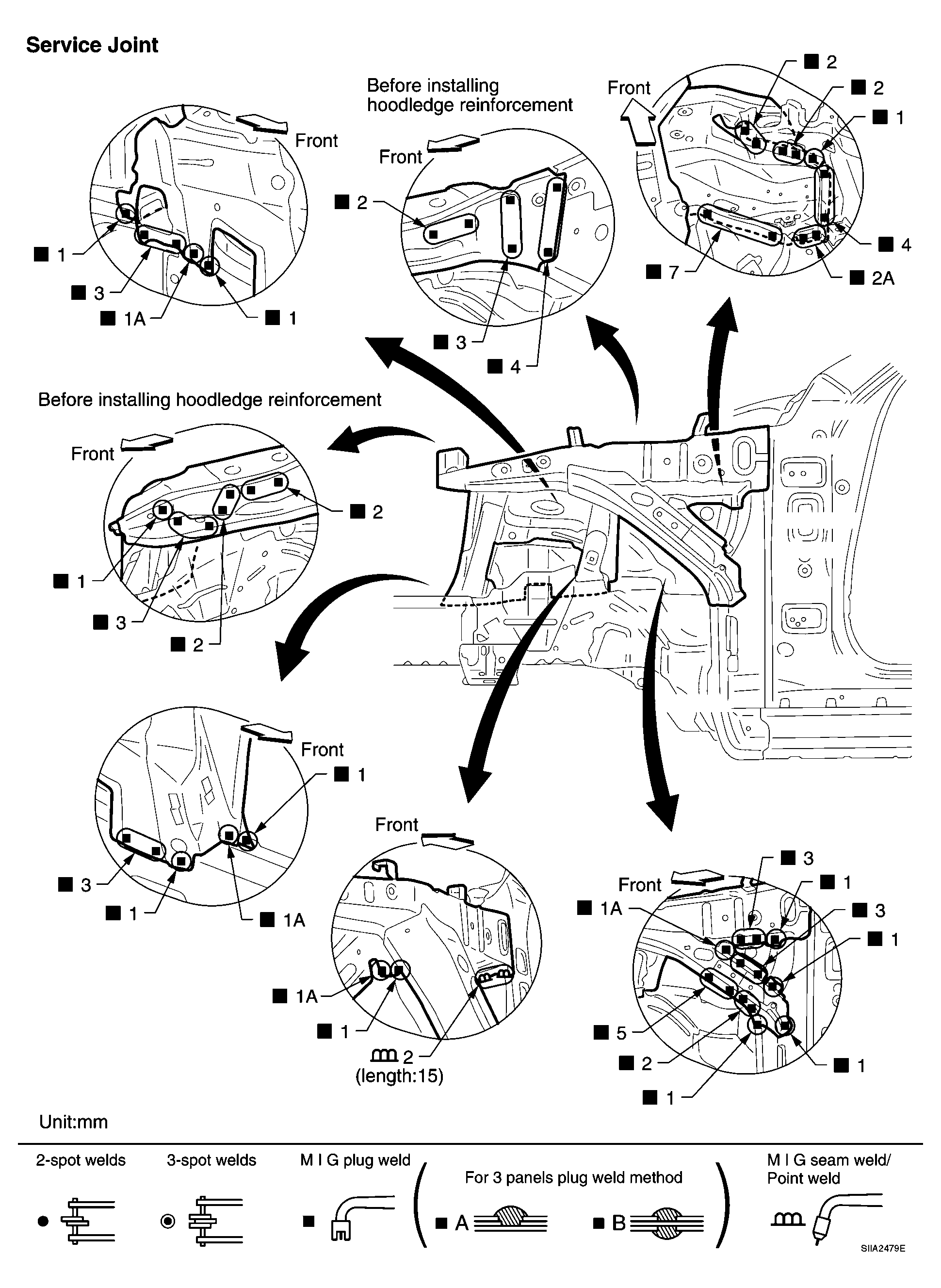

Fig 1: Identifying Service Joint - Hoodledge (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Change parts
Front strut housing (LH)
Upper front hoodledge (LH)
Hoodledge reinforcement (LH)

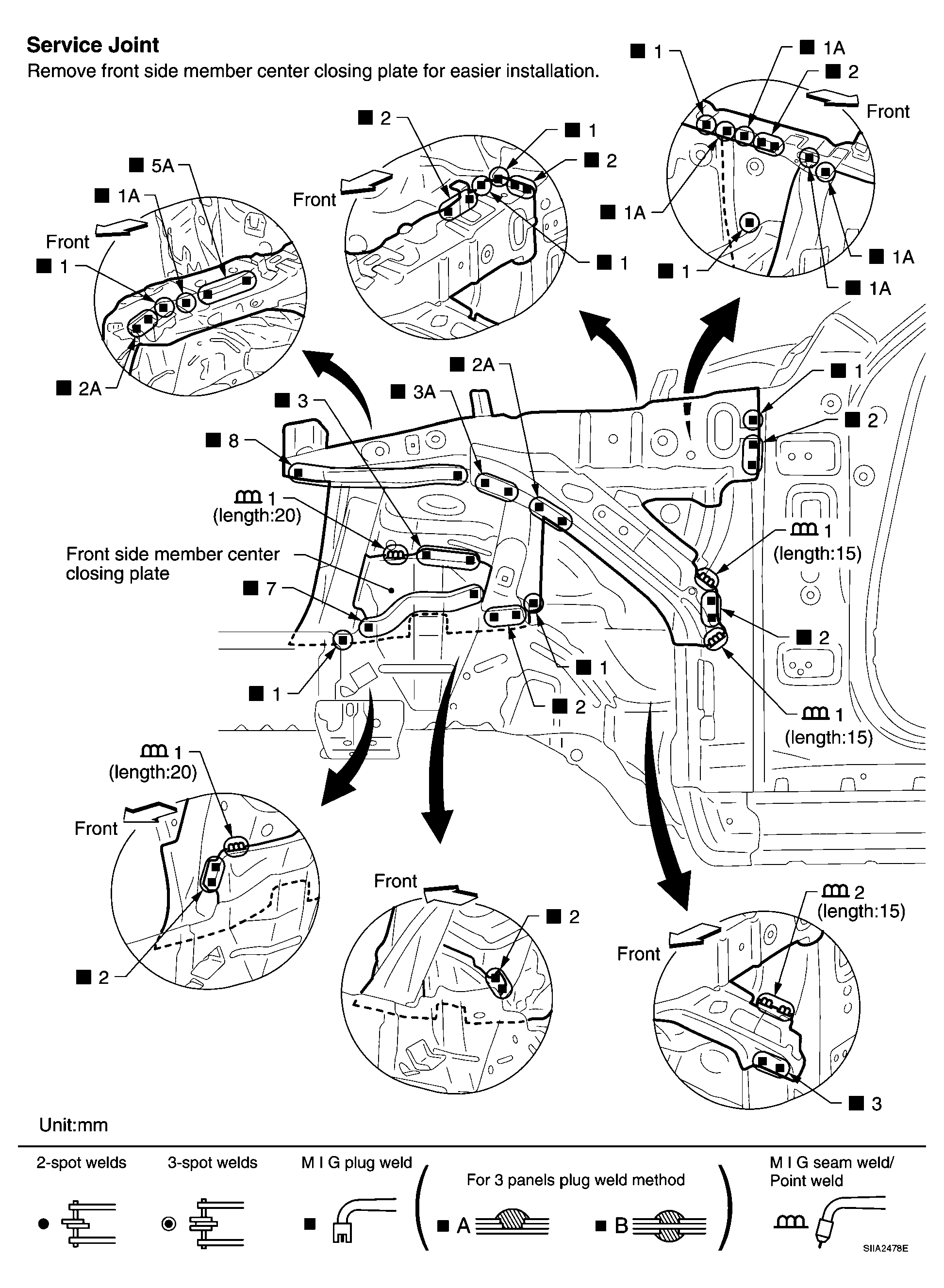

Fig 2: Identifying Service Joint - Hoodledge (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
