Rear Fender

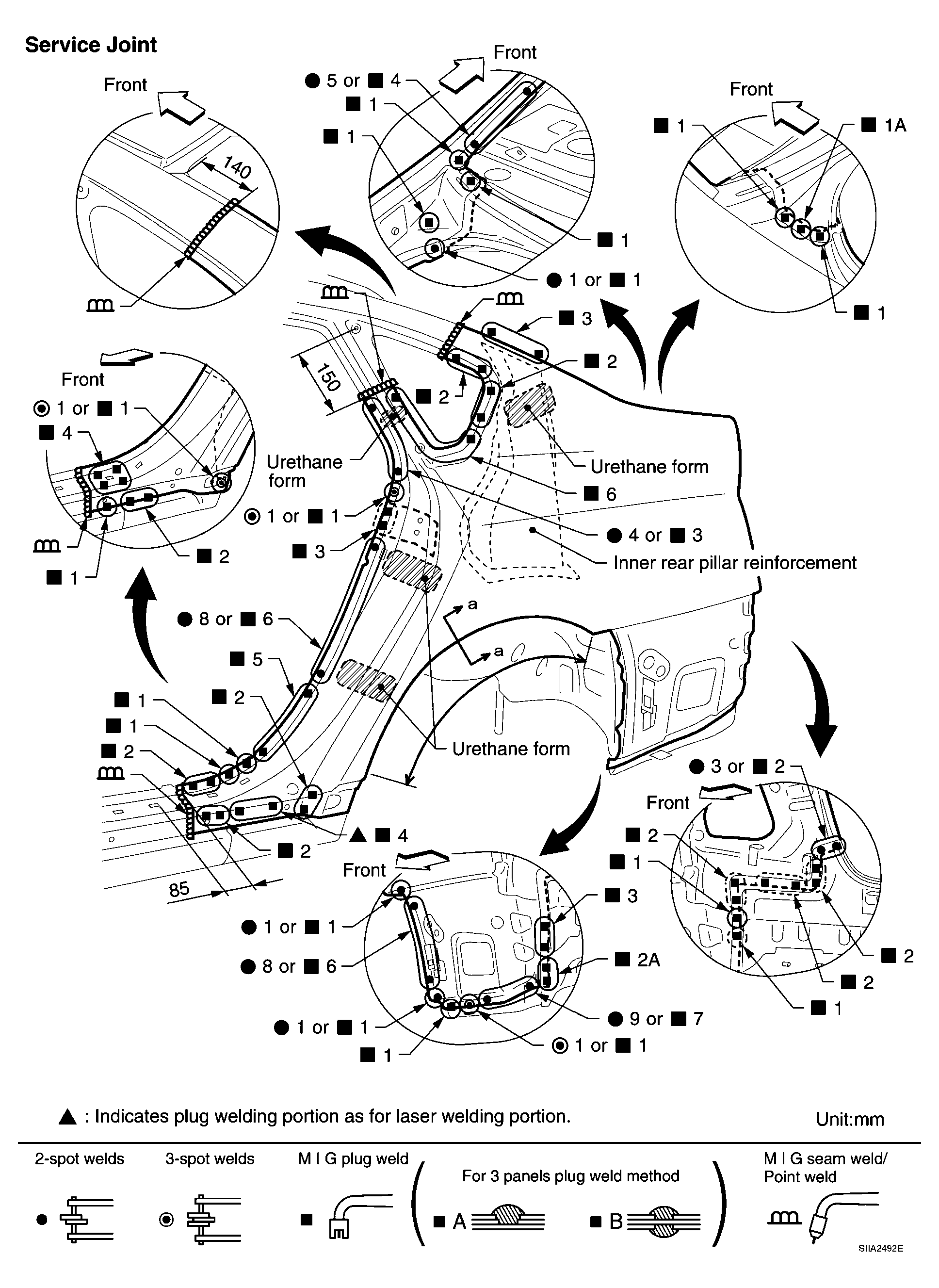

Fig 1: Identifying Rear Fender Service Joints

Courtesy of NISSAN MOTOR CO., U.S.A.

Change parts

• Rear fender assembly (LH)

Fig 2: Installing Procedure Of Rear Fender

Courtesy of NISSAN MOTOR CO., U.S.A.
