Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.

   Refer to , "GROUND INSPECTION ".

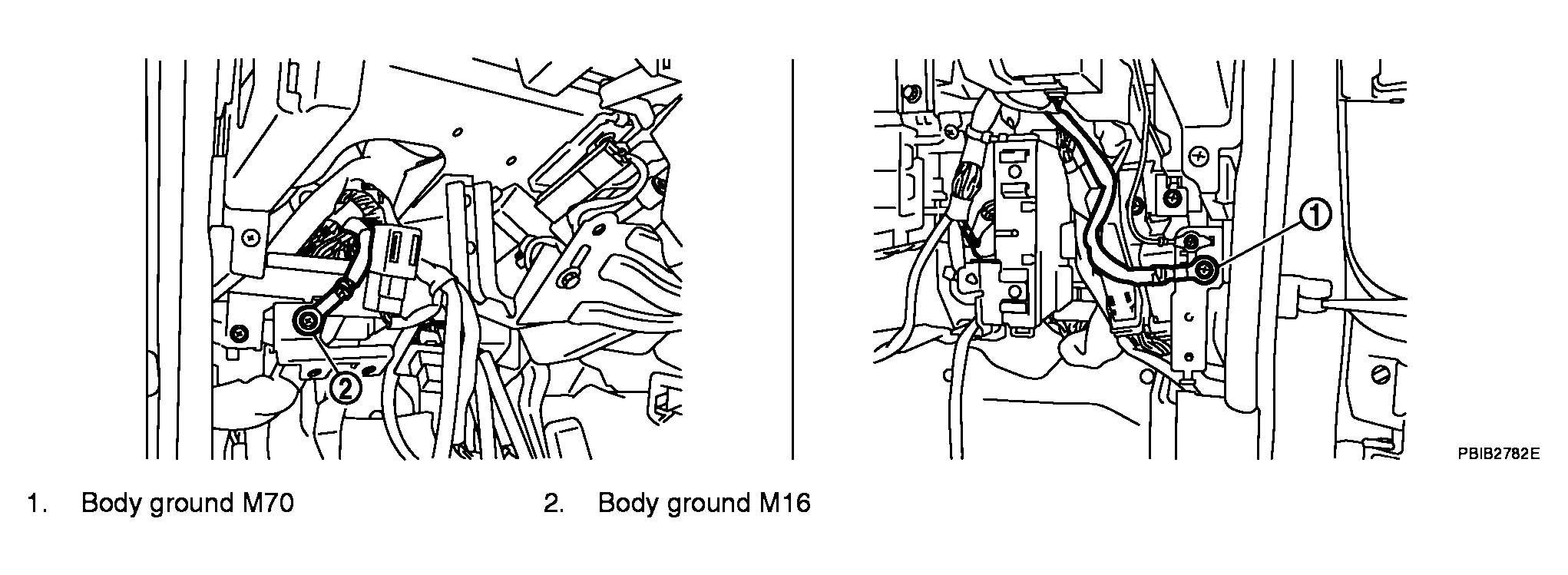

   Fig 1: Checking Ground Connections

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

1. Disconnect EVAP control system pressure sensor (3) harness connector.
   • Illustration shows the view from under the vehicle.
   • <-: Vehicle front
   • EVAP canister vent control valve (1)
   • EVAP canister (2)
2. Check sensor harness connector for water.

   Water should not exist.

OK or NG

OK: GO TO 3.

NG: Repair or replace harness connector.

Fig 2: Identifying EVAP Canister Vent Control Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to , "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 4.

NG: Replace EVAP control system pressure sensor.

Refer to , "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

For Wiring Diagram, refer to Wiring Diagram .

: INSPECTION END
