Engine Control System - VK45DE - M45 - Introduction And DTC Index
›
Basic Service Procedure
›
Idle Mixture Ratio Adjustment
›
Overall Sequence
Overall Sequence

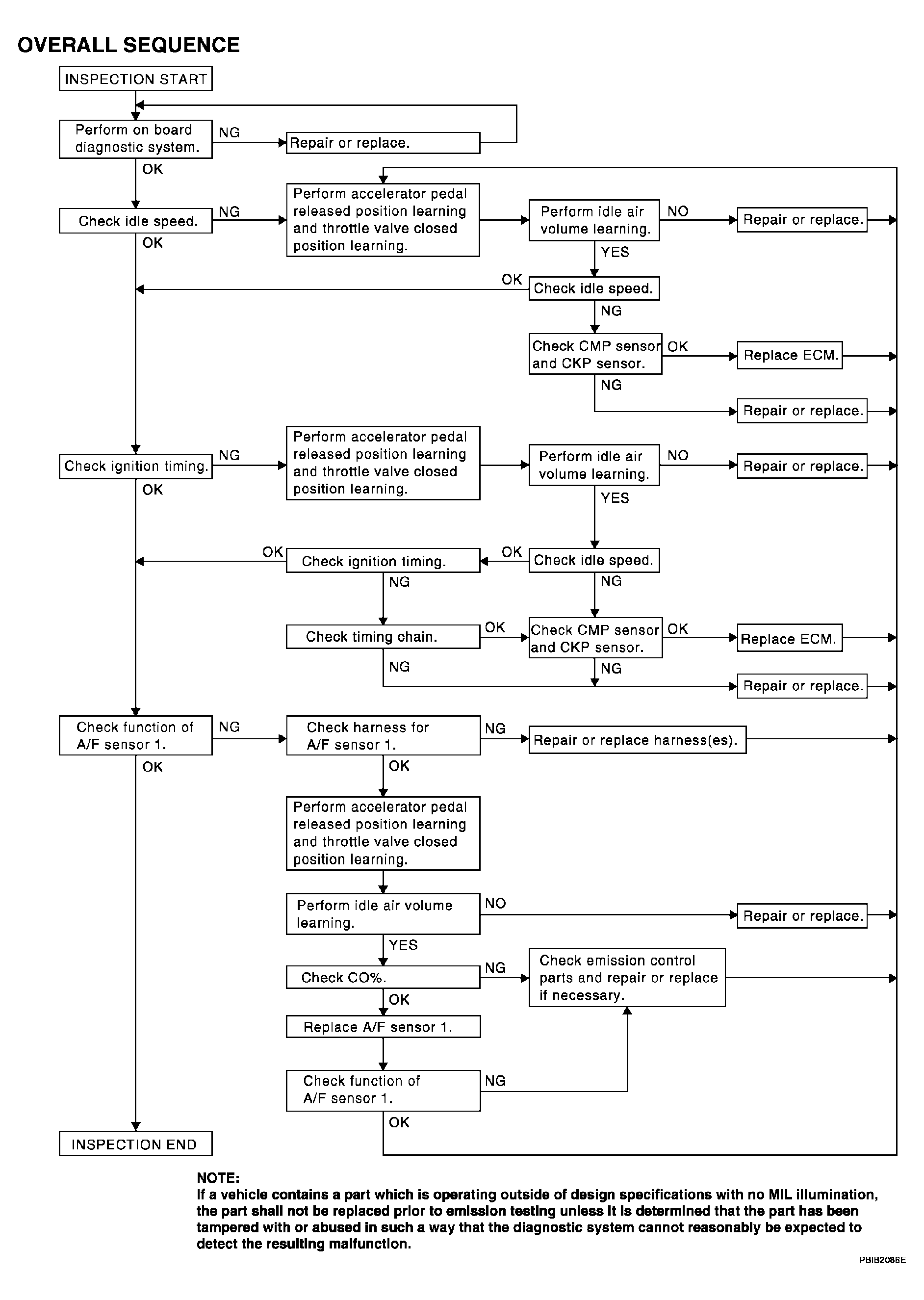

Fig 1: Overall Sequence Of Basic Service Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
