Engine Control System - VK45DE - M45 - Introduction And DTC Index
›
Trouble Diagnosis
›
Symptom Matrix Chart
›
System - Basic Engine Control System
System - Basic Engine Control System

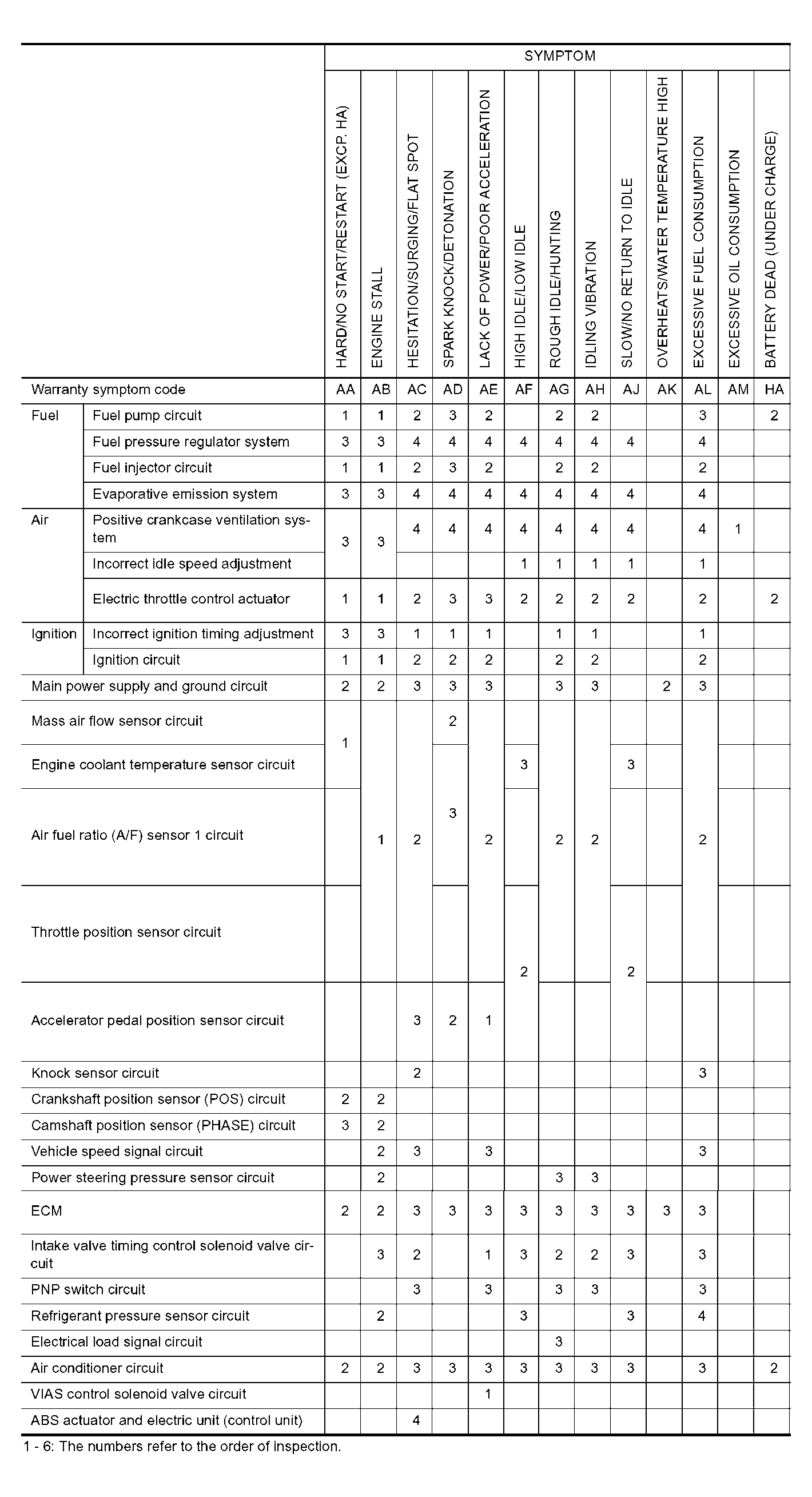

Fig 1: Symptom Matrix Chart (System - Basic Engine Control System)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
