Engine Control System - VK45DE - M45 - Introduction And DTC Index
›
Trouble Diagnosis
›
CONSULT-II Function (ENGINE)
›
Engine Control Component Parts/Control Systems Application
Engine Control Component Parts/Control Systems Application

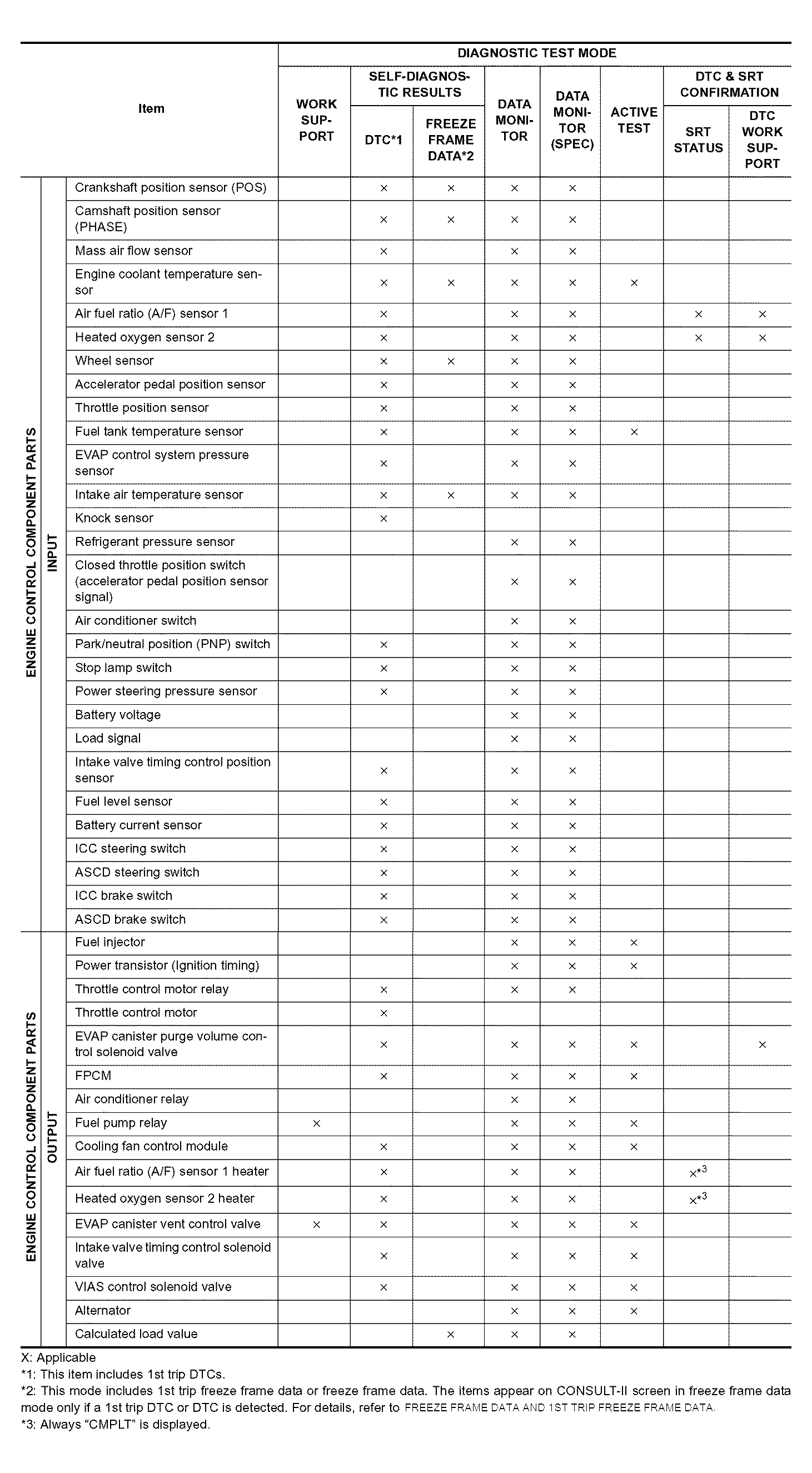

Fig 1: Engine Control Component Parts/Control Systems Application Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
