CAN Communication Unit: Notes
Refer to the following table to determine can system type.
CAN SYSTEM TYPE
| Body type | Sedan | ||
|---|---|---|---|
| Axle | 2WD | ||
| Engine | VK45DE | ||
| Transmission | A/T | ||
| Brake control | VDC | ||
| ICC system | x | ||
| Rear active steer | x | ||
| Lane departure warning system | x | ||
| CAN system type | 1 | 2 | 3 |
| CAN system trouble diagnosis | CAN SYSTEM (TYPE 1) | CAN SYSTEM (TYPE 2) | CAN SYSTEM (TYPE 2) |
| x: Applicable | |||
NOTE:
Confirming the presence of the following items helps to identify CAN system type.

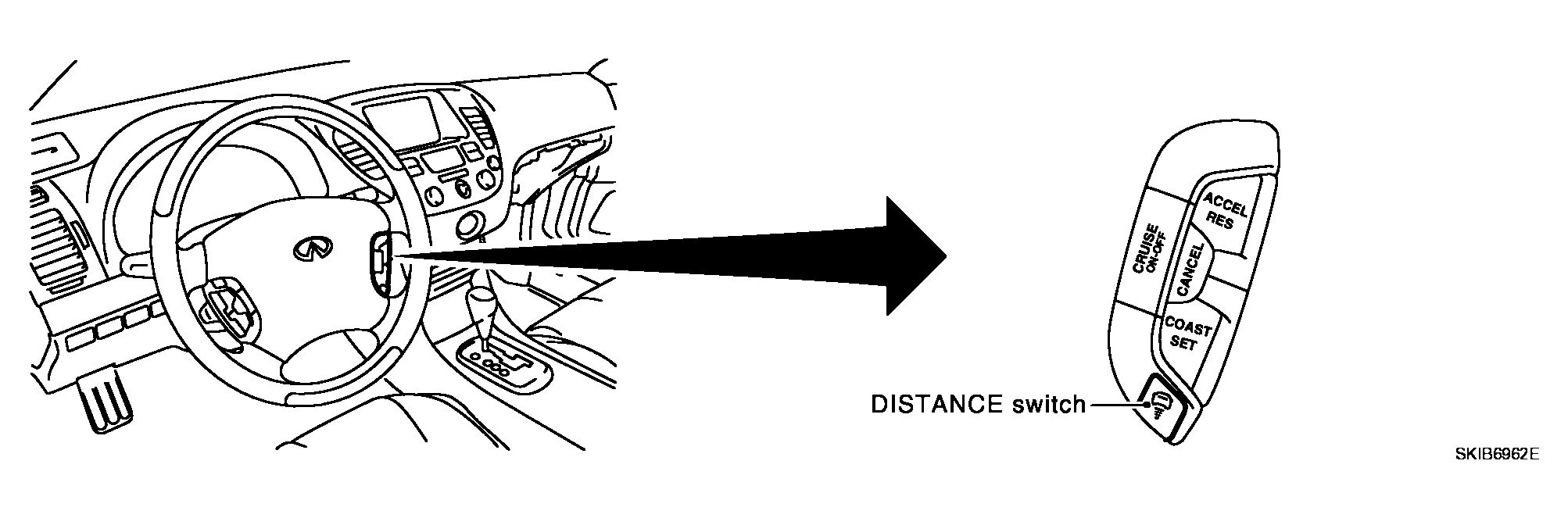

- Model with ICC system
- Model with Lane departure warning system
- Model with rear active steer
