Functional Diagram

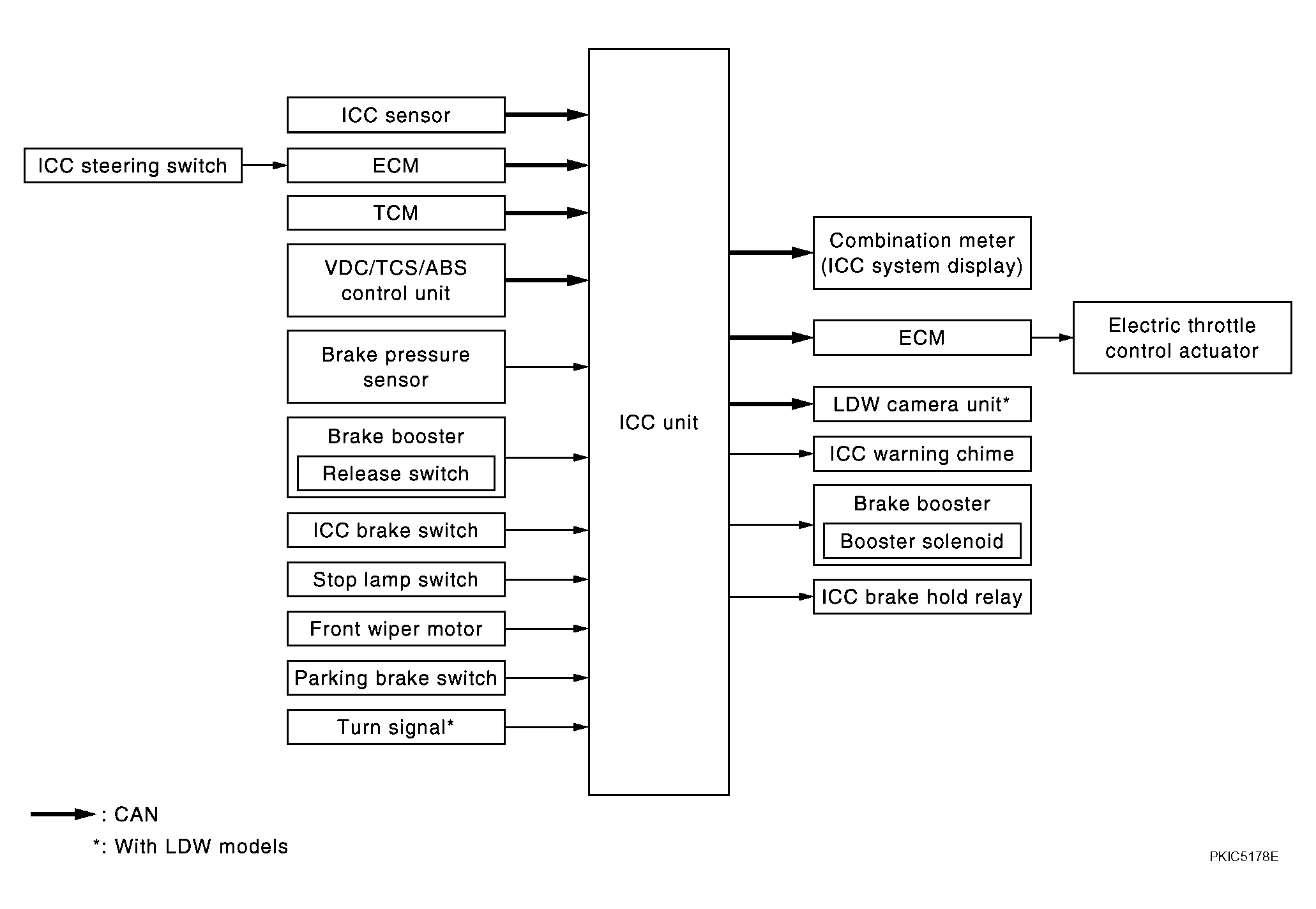

Fig 1: ICC Functional Diagram

G04131846

Courtesy of NISSAN MOTOR CO., U.S.A.

Items of input/output signal to be checked with CONSULT-II

ICC FUNCTIONAL DIAGRAM DESCRIPTION (INPUT)

Input	Data monitored Item [unit]	CAN	Description
ECM	THRTL OPENING [%]	x	Indicates throttle angle read by ICC unit through CAN communication (ECM transmits throttle angle through CAN communication).
	ENGINE RPM [rpm]	x	Indicates engine speed read by ICC unit through CAN communication (ECM transmits engine speed through CAN communication).
	MAIN SW [ON/OFF]	x	Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steering switch signal through CAN communication).
	SET/COAST SW [ON/OFF]	x	Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steering switch signal through CAN communication).
	CANCEL SW [ON/OFF]	x	Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steering switch signal through CAN communication).
	RESUME/ACC SW [ON/OFF]	x	Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steering switch signal through CAN communication).
	IDLE SW [ON/OFF]	x	Indicates [ON/OFF] status of idle switch read by ICC unit through CAN communication (ECM transmits ON/OFF status through CAN communication).
TCM	VHCL SPD AT [km/h] or [mph]	x	Indicates vehicle speed calculated from AT vehicle speed sensor by ICC unit through CAN communication (TCM transmits AT vehicle speed sensor signal through CAN communication).
	GEAR [1, 2, 3, 4, 5]	x	Indicates AT gear position read by ICC unit through CAN communication (TCM transmits gear position through CAN communication).
	D RANGE SW [ON/OFF]	x	Indicates [ON/OFF] status of "D" position read by ICC unit through CAN communication (TCM transmits ON/OFF condition of "D" position through CAN communication).
	NP RANGE SW [ON/OFF]	x	Indicates PNP switch signal read by ICC unit through CAN communication (TCM transmits PNP switch signal through CAN communication).
VDC/TCS/ABS control unit	VHCL SPEED SE [km/h] or [mph]	x	Indicates vehicle speed calculated from wheel sensor by ICC unit through CAN communication (VDC/TCS/ABS control unit transmits wheel speed sensor signal through CAN communication).
Brake pressure sensor	PRESS SENS [bar]		Indicates brake fluid pressure value calculated from signal voltage of pressure sensor.
Release switch	RELEASE SW NO [ON/OFF]		Indicates [ON/OFF] status as judged from release switch signal. ON when brake is depressed. OFF when brake is not depressed.
Release switch	RELEASE SW NC [ON/OFF]		Indicates [ON/OFF] status as judged from release switch signal. ON when brake is not depressed. OFF when brake is depressed.
ICC brake switch	BRAKE SW [ON/OFF]		Indicates [ON/OFF] status as judged from ICC brake switch signal.
Stop lamp switch	STOP LAMP SW [ON/OFF]		Indicates [ON/OFF] status as judged from stop lamp switch signal.
Front wiper motor	WIPER SW [OFF/LOW/HIGH]		Indicates wiper [OFF/LOW/HIGH] status.
Turn signal	TURN SIGNAL [OFF/LH/RH LH/RH]		Indicates turn signal [OFF/LH/RH LH/RH] status.

ICC FUNCTIONAL DIAGRAM DESCRIPTION (OUTPUT)

Output	Data monitored Item [unit]	CAN	Description
ICC warning chime	BUZZER O/P [ON/OFF]		Indicates [ON/OFF] status of ICC warning chime output.
ICC brake hold relay	STP LMP DRIVE [ON/OFF]		Indicates [ON/OFF] status of brake hold relay drive output.

CONSULT-II ICC ACTIVE TEST ITEM

Output	CONSULT-II ICC [ACTIVE TEST] Item	CAN	Description
Combination meter	METER LAMP	x	Able to turn ICC system display ON with a driving signal from ICC unit.
ICC warning chime	ICC BUZZER 1		Able to start ICC warning chime with a driving signal from ICC unit.
Booster solenoid	BOOSTER SOL/V 3		Able to start booster solenoid with a driving signal from ICC unit.
ICC brake hold relay	STOP LAMP		Able to start ICC brake hold relay with a driving signal from ICC unit.
