Auto Trunk System
›
Schematic
Auto Trunk System: Schematic

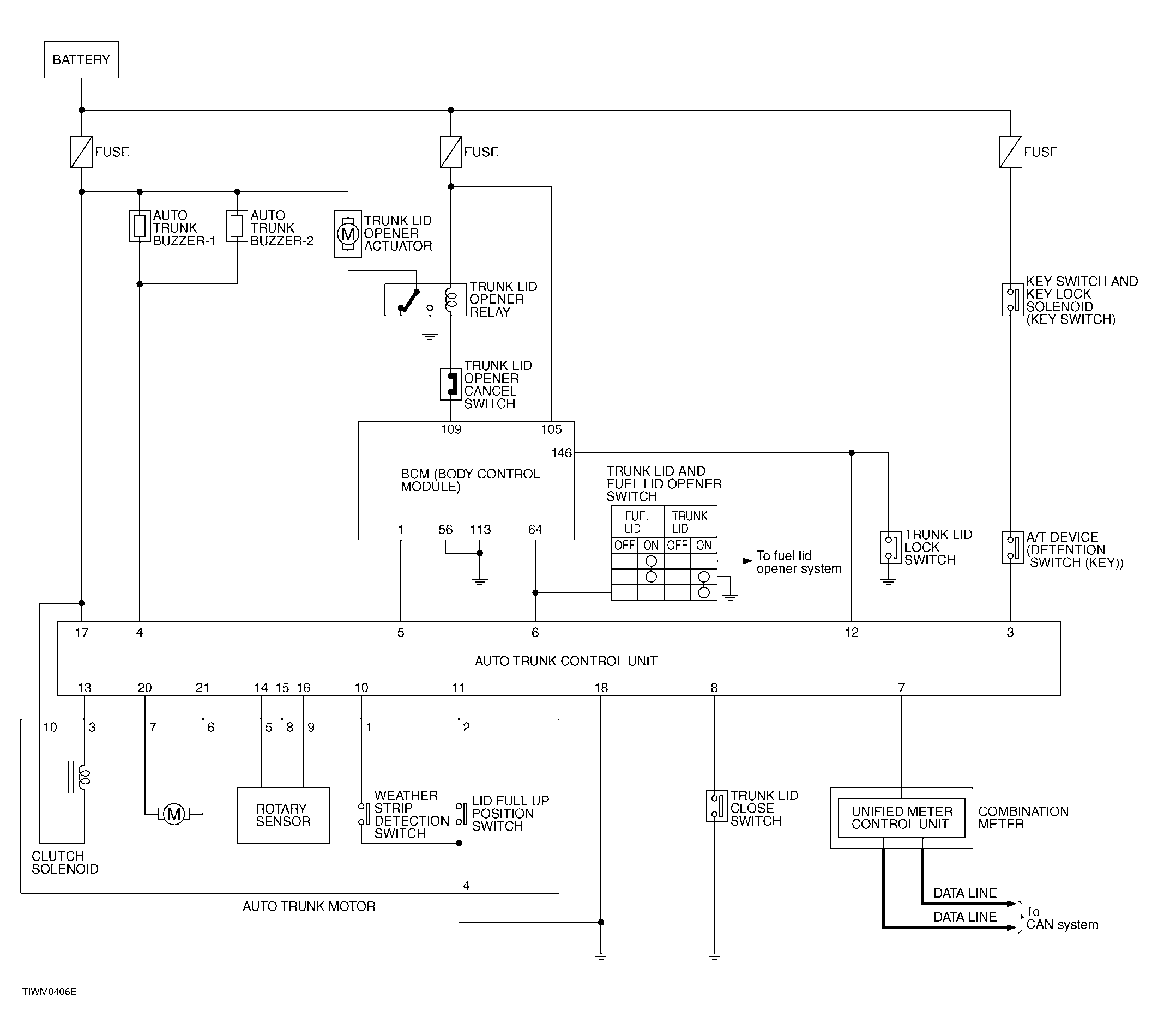

Fig 1: Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
