Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Body, Lock & Security System
›
Electronic Key System
›
Work Flow
Work Flow

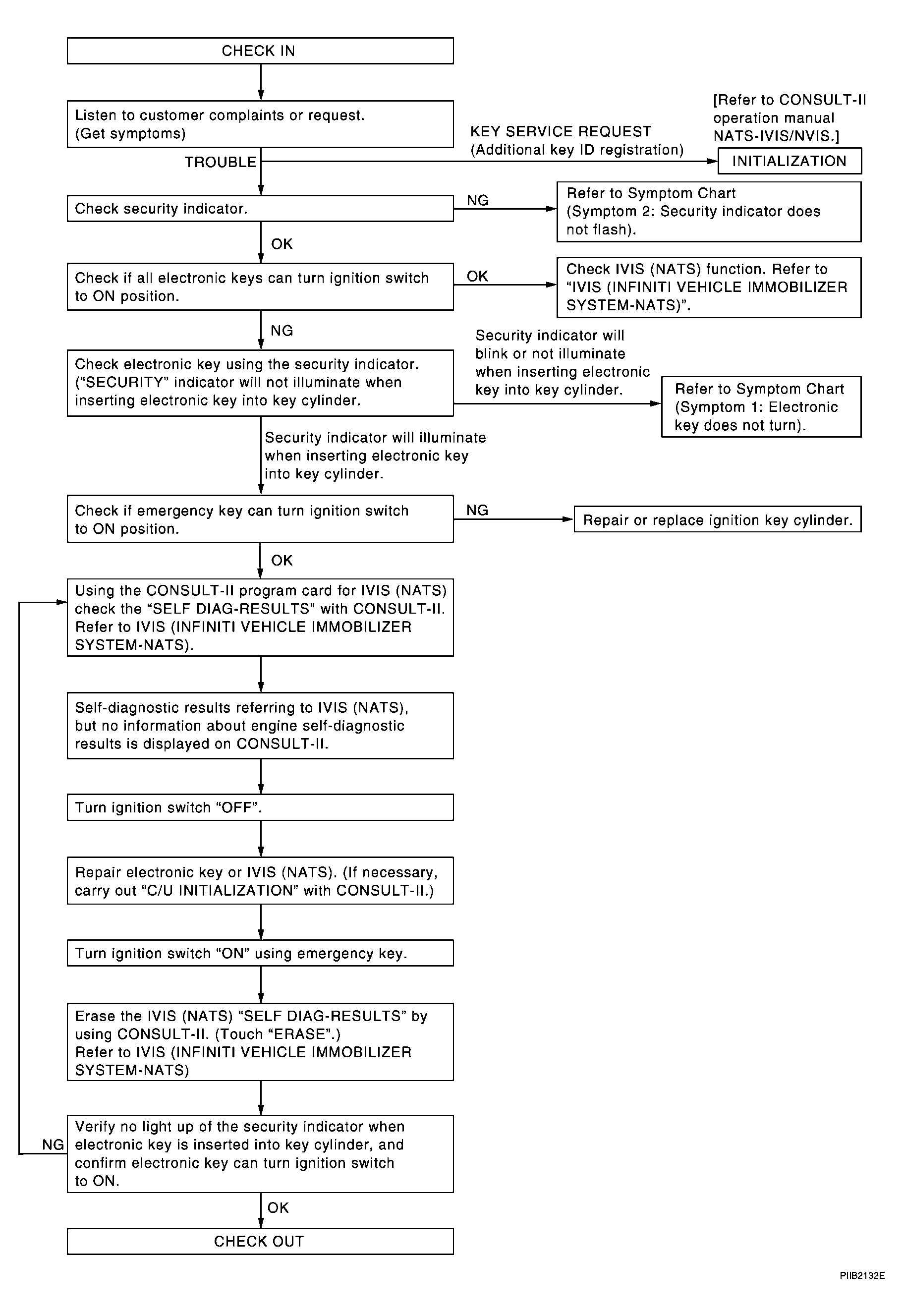

Fig 1: Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
