Check Front Door Switch

With CONSULT-II

Check front door switch ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

Fig 1: CONSULT II Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check front door switch in "SWITCH MONITOR" mode. Refer to , "SWITCH MONITOR ".

OK or NG

• OK : Front door switch is OK.
• NG : GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect front door switch connector and BCM connector.
3. Check continuity between front door switch connector B20 (driver side), B220 (passenger side) terminal 1 and BCM connector M4 (passenger side), B4 (driver side) terminal 37, 142.

   Driver side door switch

   1 (W/R) - 142 (W/R) : Continuity should exist.

   Passenger side door switch

   1 (W/G) - 37 (W/G) : Continuity should exist.

4. Check continuity between front door switch connector B20 (driver side), B220 (passenger side) terminal 1and ground.

   Each door switch

   1 (W/R, W/G) - Ground : Continuity should not exist.

OK or NG

• OK : GO TO 3.
• NG : Repair or replace harness.

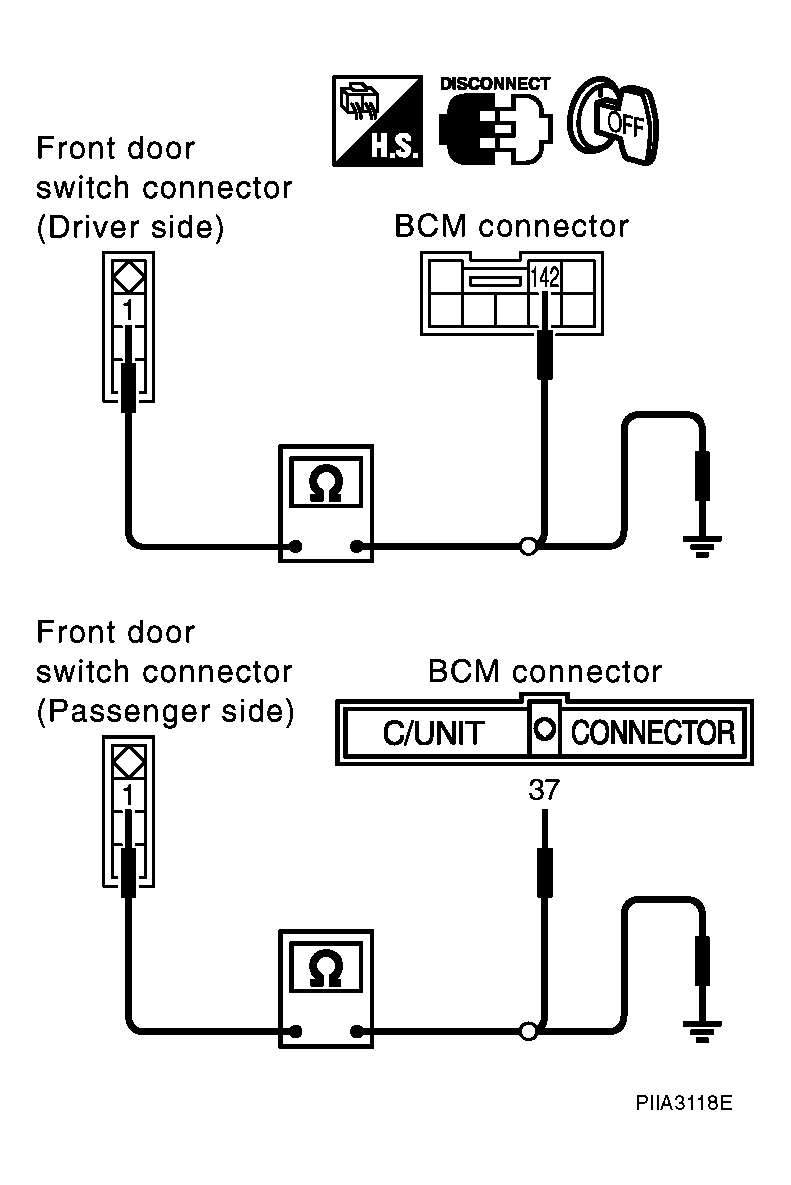

  Fig 2: Checking Continuity Between Front Door Switch Connector B20, B220 Terminal 1 And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between front door switch (driver side), (passenger side) terminal 1and ground part of front door switch.

OK or NG

• OK : Check door switch case ground.
• NG : Replace malfunction front door switch.
  Fig 3: Checking Continuity Between Front Door Switch Terminal 1 And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.
