Inspection with CONSULT-II

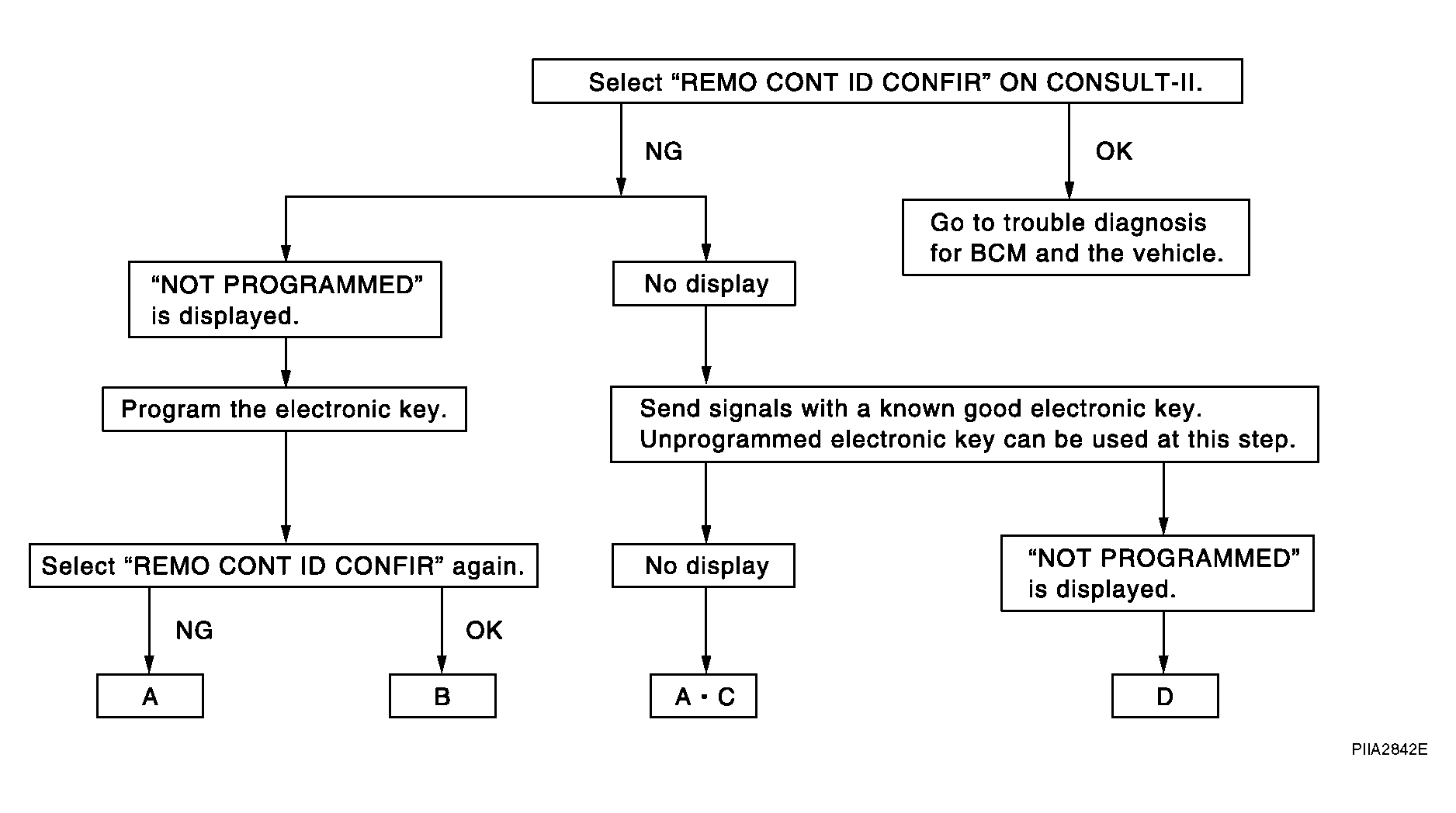

Fig 1: CONSULT-II Inspection Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

A: Replace BCM

B: Electronic key not registered

C: Remote keyless receiver inspection. Refer to Check Remote Keyless Entry Receiver

D: Electronic key inspection. Refer to Check Electronic Key
