Power Seat: Schematic

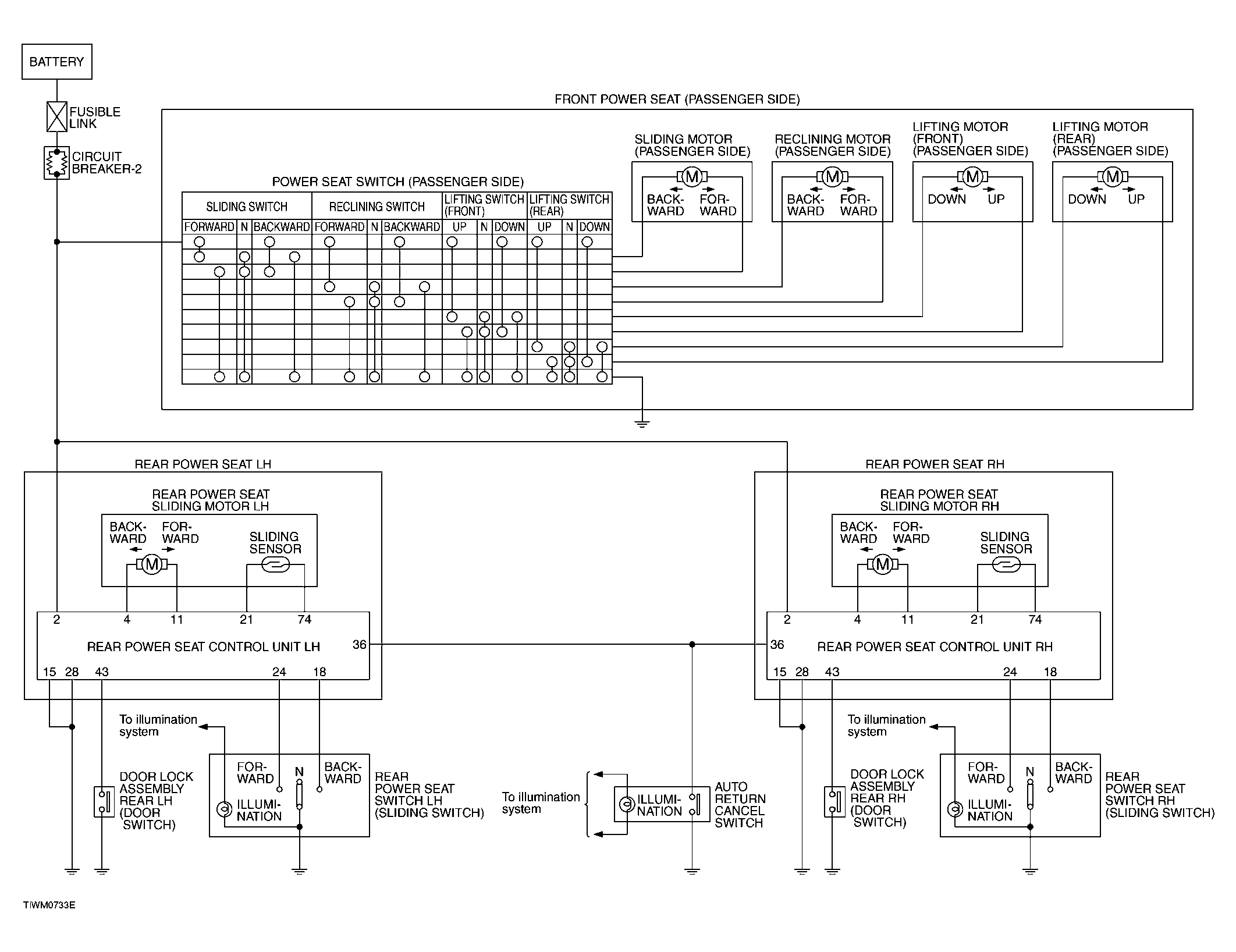

Fig 1: Power Seat - Schematic Diagram
G04130218Courtesy of NISSAN MOTOR CO., U.S.A.
