Removal and Installation: Removal

Remove instrument lower cover. Refer to "(O) INSTRUMENT LOWER COVER ".
Remove instrument finisher. Refer to "(Q) INSTRUMENT FINISHER ".
Remove grove box assembly. Refer to "(P) GLOVE BOX ".
Remove grove box cover. Refer to "(R) GLOVE BOX COVER ".
Remove instrument panel bracket.
Remove ECM. Refer to "ECM TERMINALS AND REFERENCE VALUE ".
Remove VDC/TCS/ABS control unit.

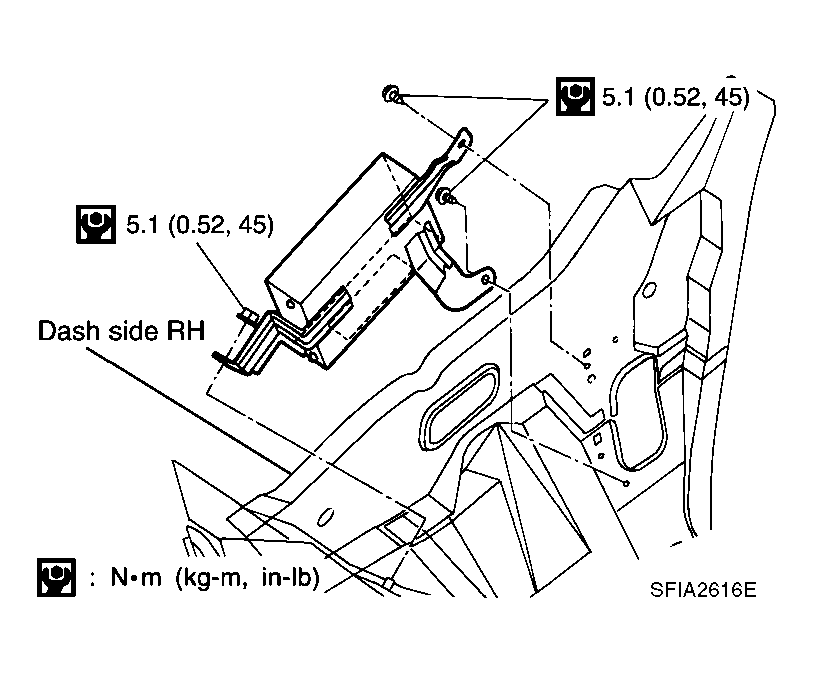

Fig 1: Removing Instrument Panel Bracket With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
