Removal and Installation of Rear View Camera Control Unit: Removal

  1. Remove trunk front finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER ".
  2. Disconnect rear view camera control unit connector.
  3. Remove bolts (2), and remove rear view camera control unit.

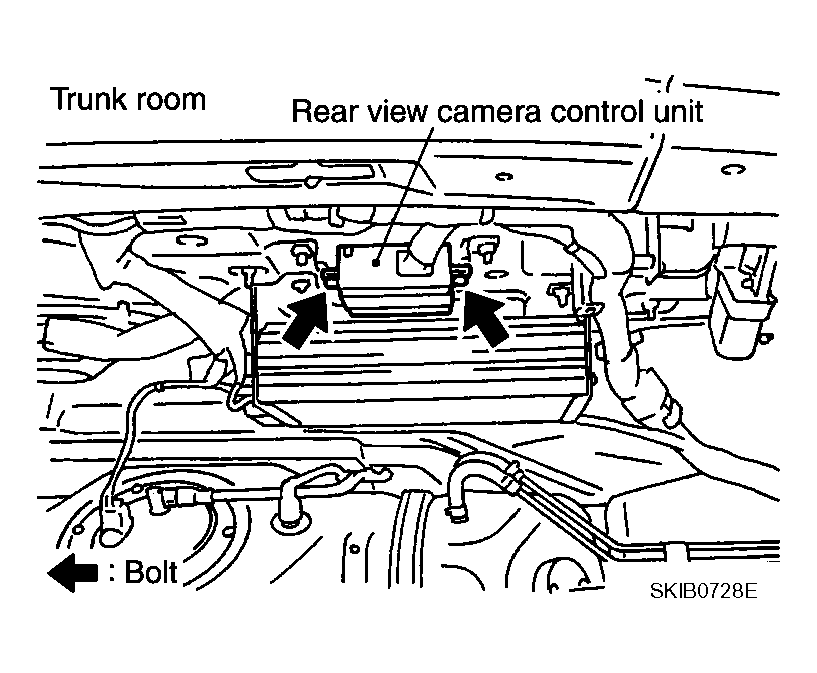

    Fig 1: Identifying Rear View Camera Control Unit
    G04131301Courtesy of NISSAN MOTOR CO., U.S.A.
