Disassembly and Assembly for Multifunction Switch: Notes

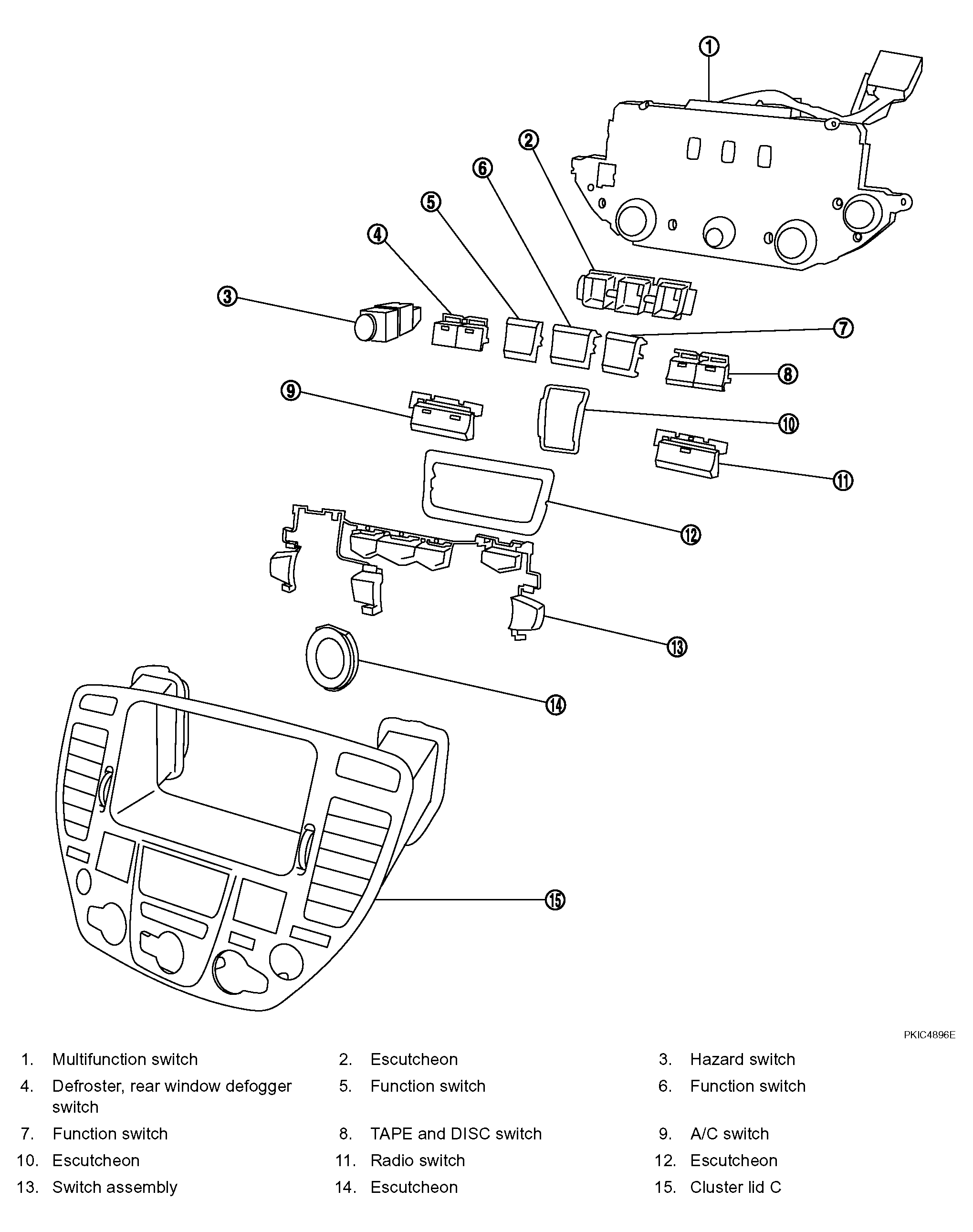

Fig 1: Exploded View Of Multifunction Switch
G04131242Courtesy of NISSAN MOTOR CO., U.S.A.
