Voice Activated Control System
›
Schematic
›
With NAVI
With NAVI

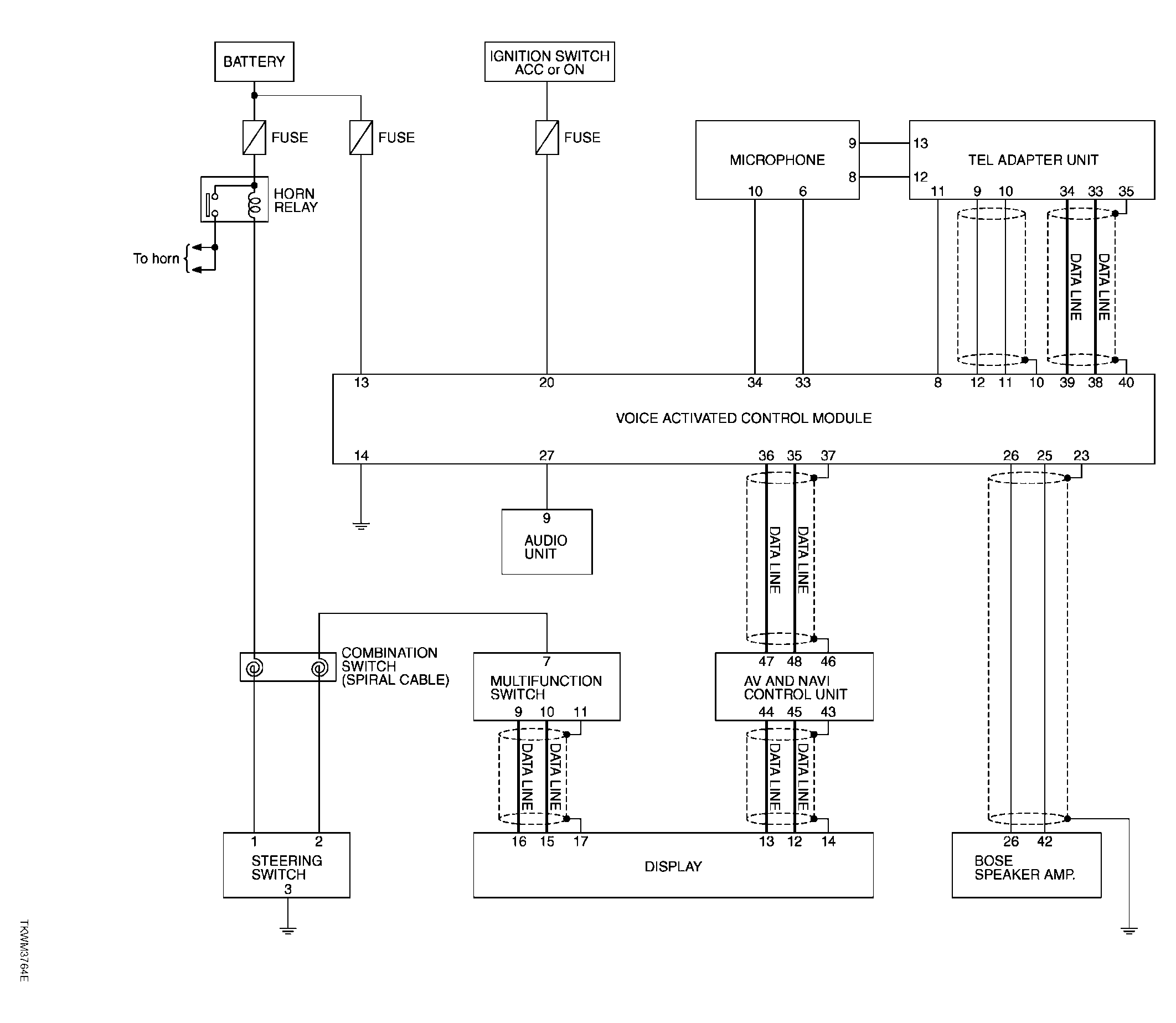

Fig 1: Voice Activated Control System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
