Schematic
›
Without NAVI
Without NAVI

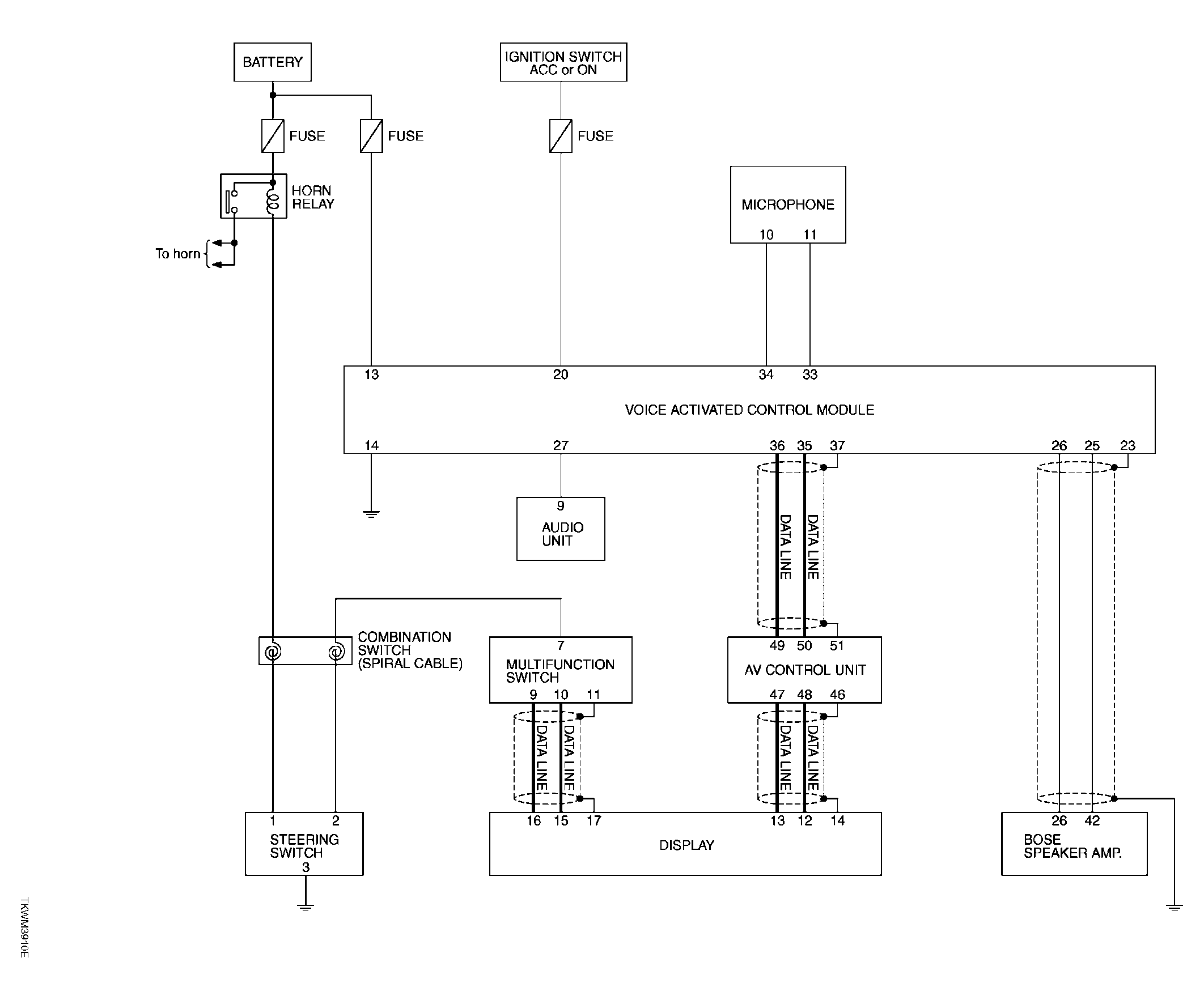

Fig 1: Voice Activated Control System Schematic - Without NAVI
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
