Lubrication Circuit
Lubrication Circuit

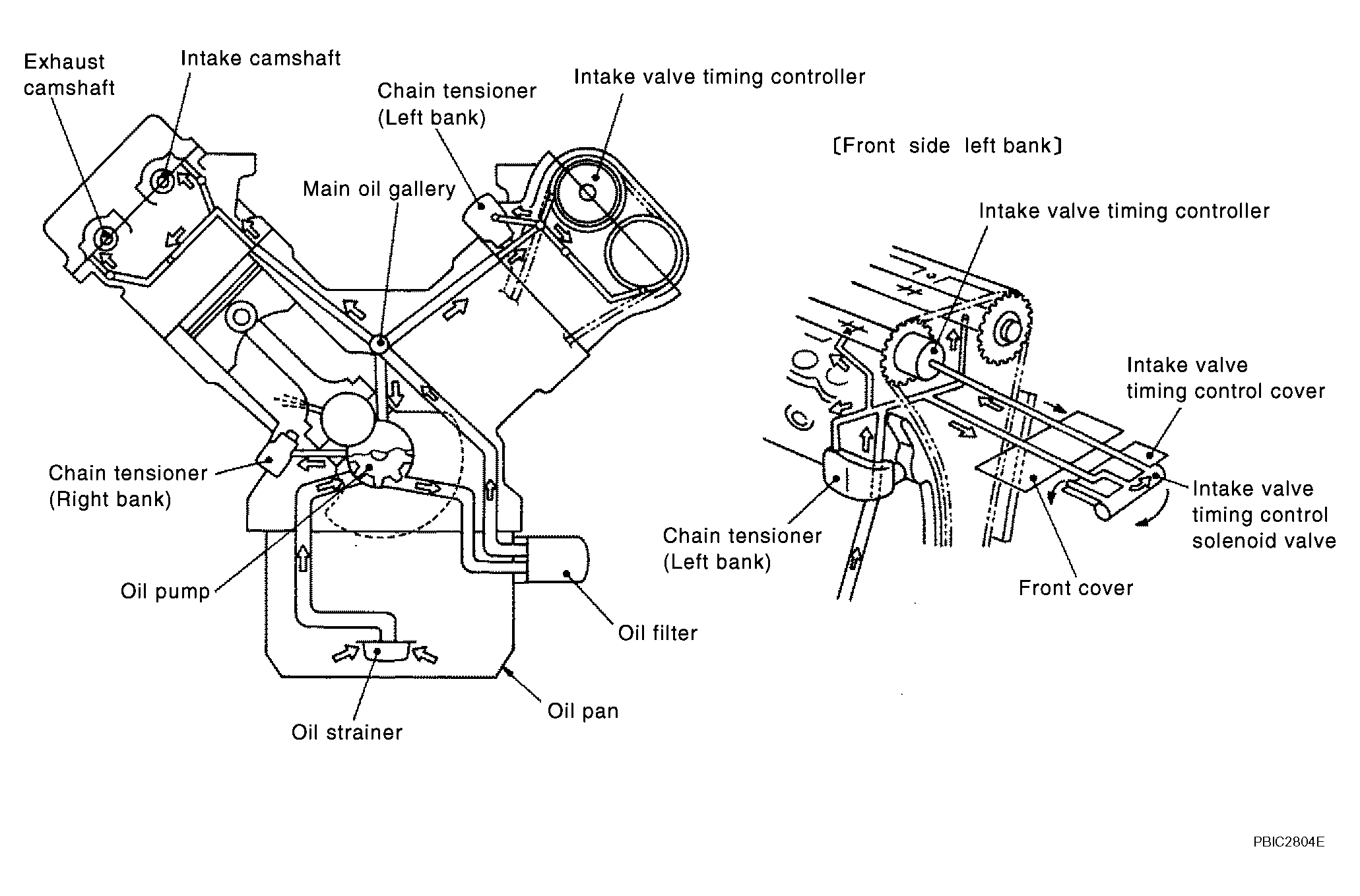

Fig 1: Identifying Lubrication System Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
