Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.

   Refer to "GROUND INSPECTION ".

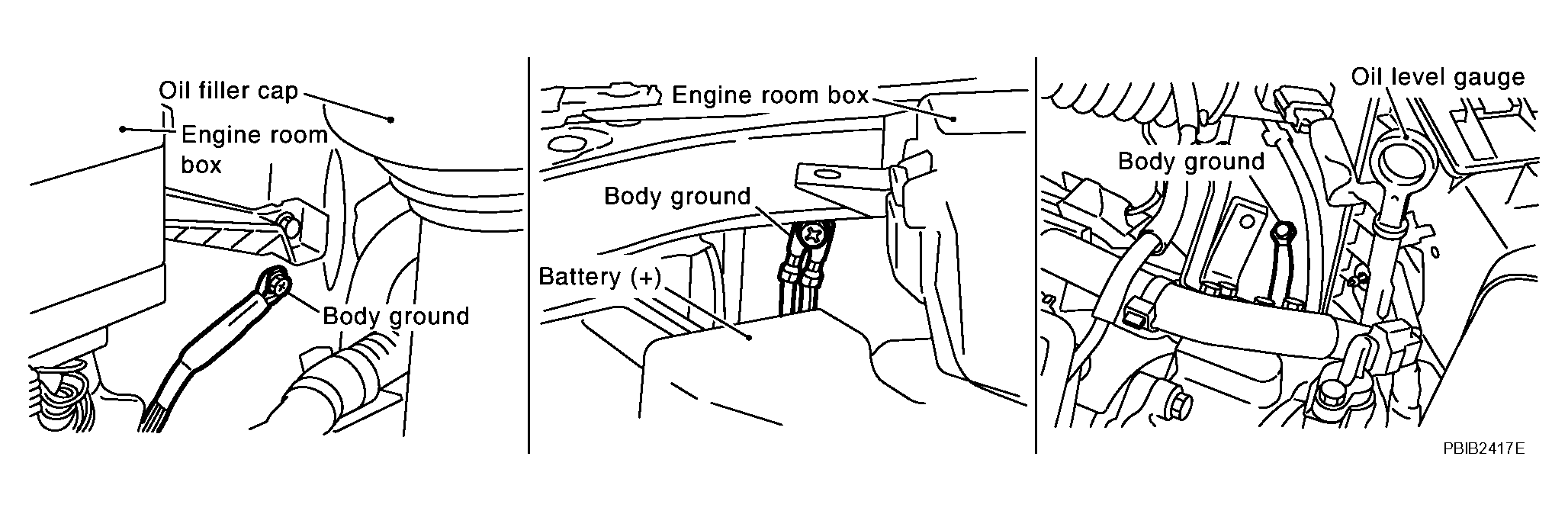

   Fig 1: Checking Ground Connections

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: Repair or replace ground connections.

1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.

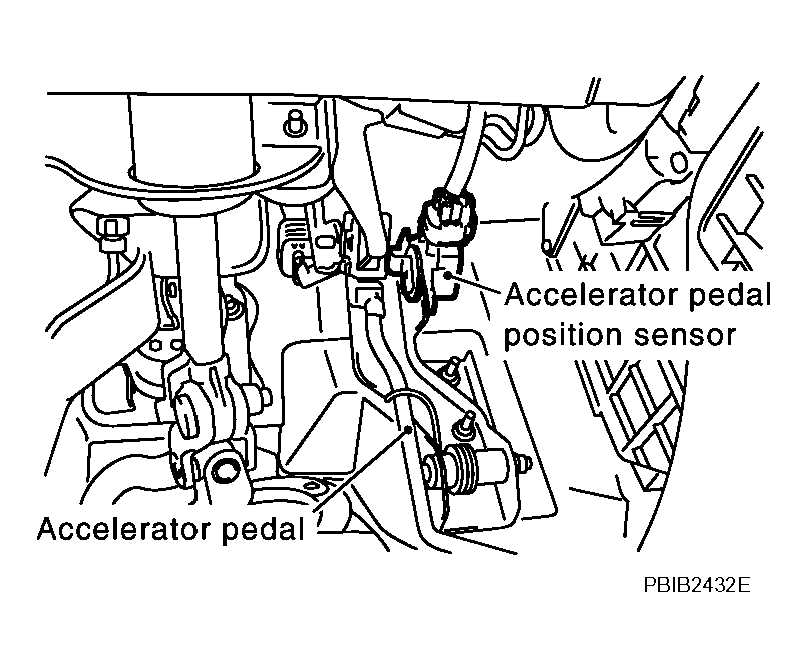

   Fig 2: Identifying APP Sensor Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between APP sensor terminal 6 and ground with CONSULT-II or tester.

   Voltage: Approximately 5V

   Fig 3: Checking Voltage Between APP Sensor Terminal 6 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO  5.
2. NG: GO TO 3.

Check harness for short to power and short to ground, between the following terminals.

OK or NG

1. OK: GO TO 4.
2. NG: Repair short to ground or short to power in harness or connectors.

Check the following.

• EVAP control pressure sensor (Refer to "COMPONENT INSPECTION ".)
• Refrigerant pressure sensor (Refer to "COMPONENT INSPECTION ".)
• Power steering pressure sensor (Refer to "COMPONENT INSPECTION ".)

OK or NG

1. OK: GO TO  7.
2. NG: Replace malfunctioning component.

Refer to "COMPONENT INSPECTION ".

OK or NG

1. OK: GO TO  7.
2. NG: GO TO 6.

1. Replace accelerator pedal assembly.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
3. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
4. Perform "IDLE AIR VOLUME LEARNING ".

1. : INSPECTION END

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

1. : INSPECTION END
