Active Damper Suspension System
›
System Diagram
›
Notes
System Diagram: Notes

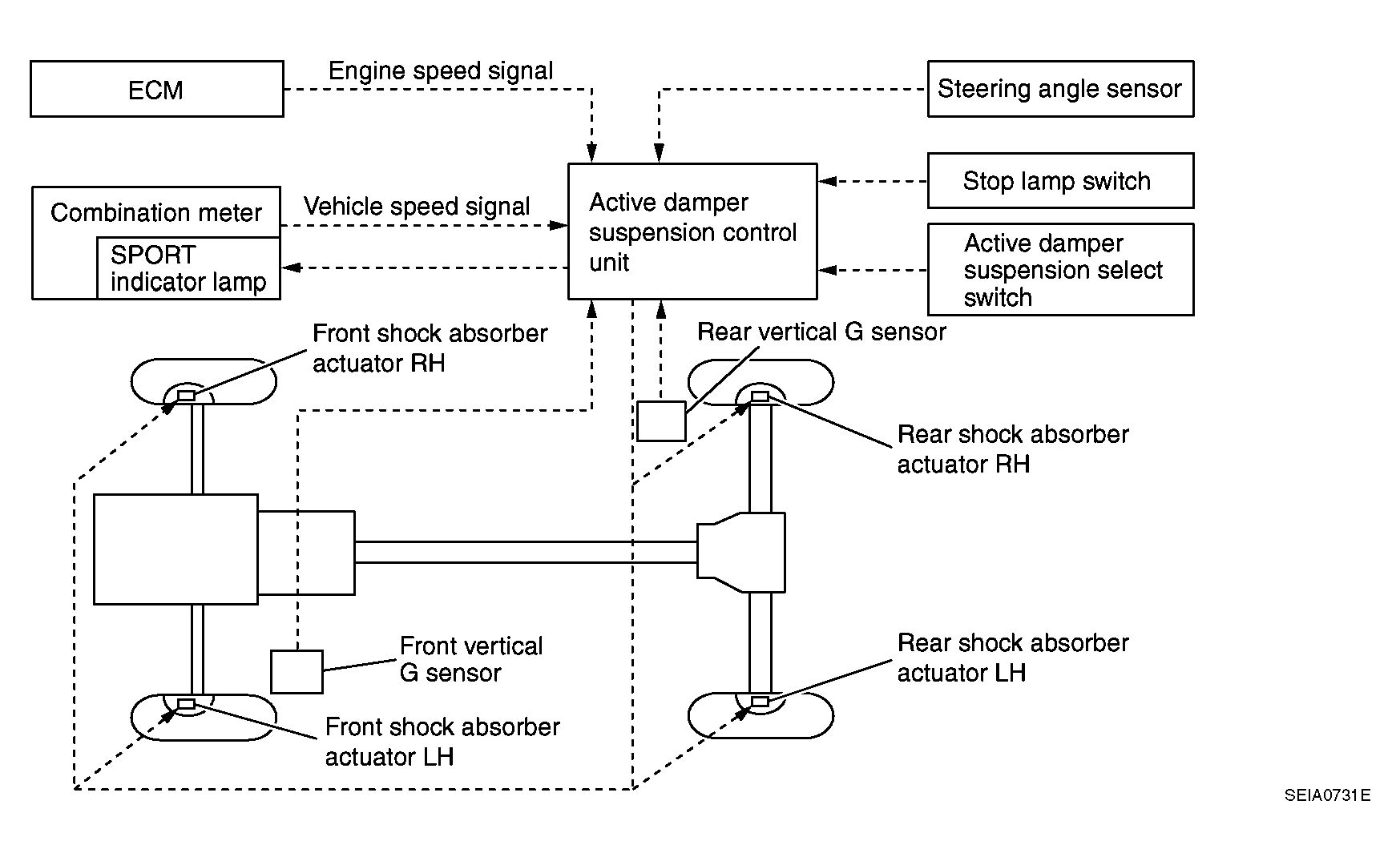

Fig 1: Active Damper Suspension Control Unit System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
