Shift Change System Diagram
Shift Change System Diagram

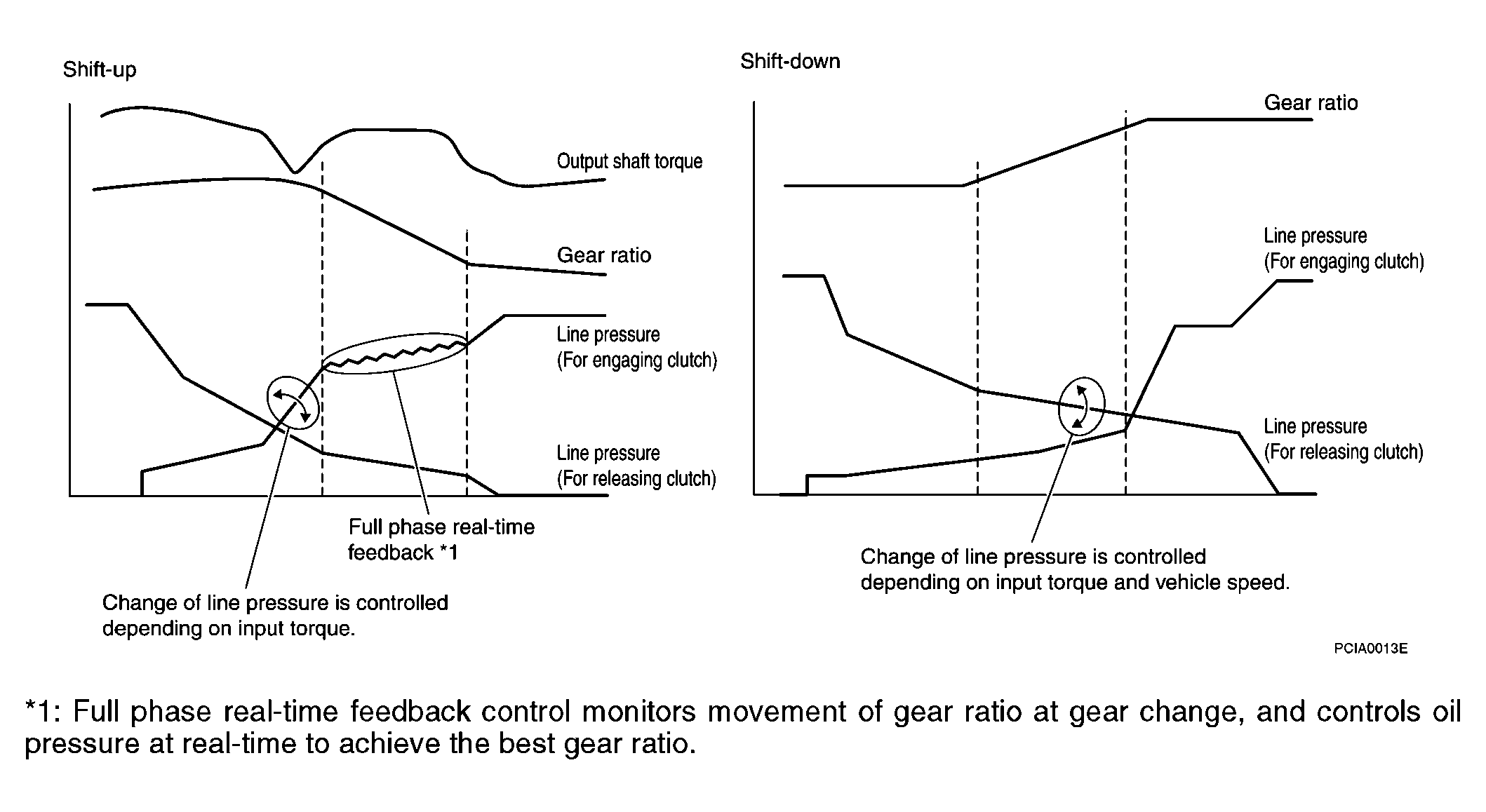

Fig 1: Shift Change System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

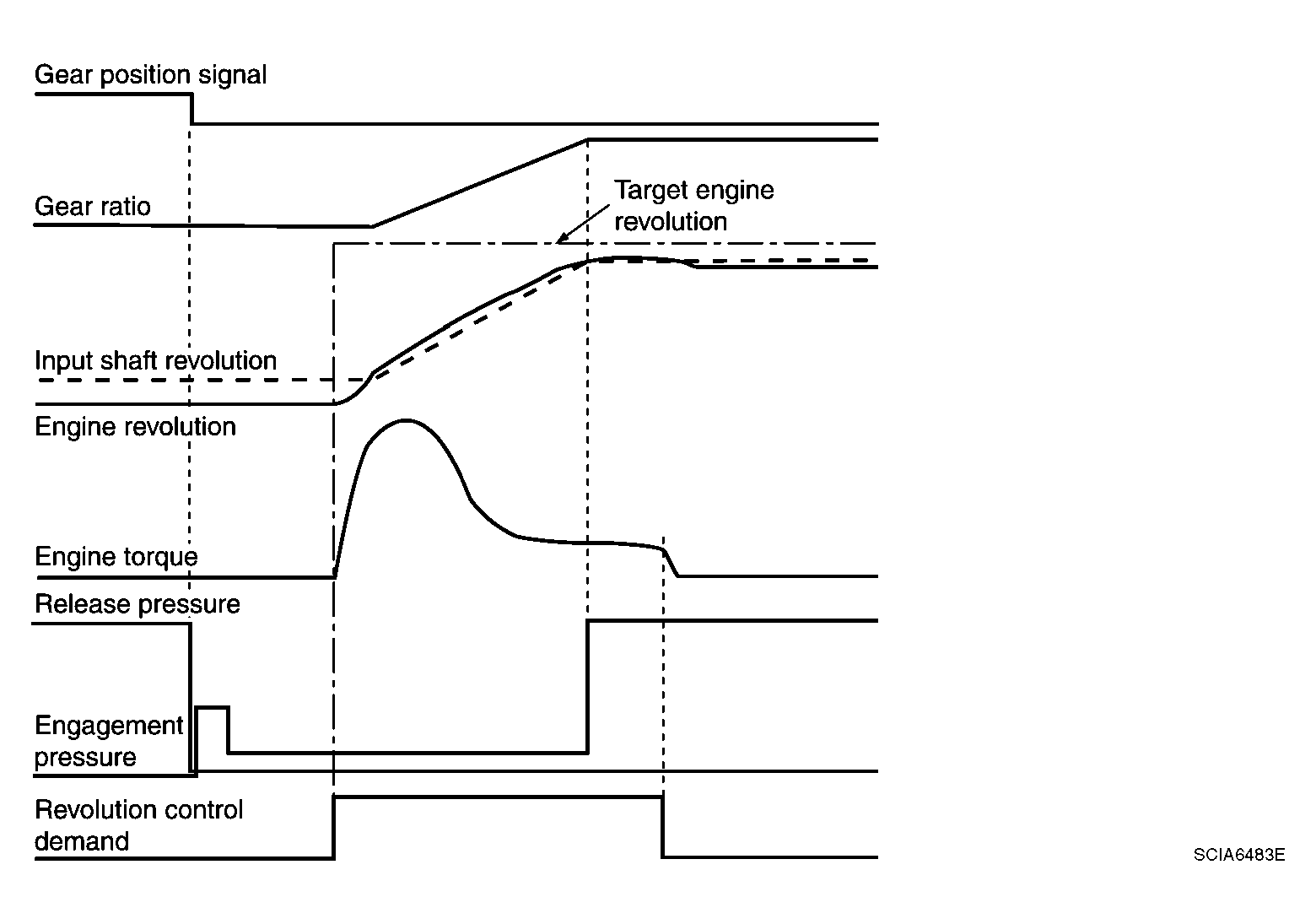

Fig 1: Shift Change System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
