Control Rod Removal and Installation
›
Control Rod Components
Control Rod Components

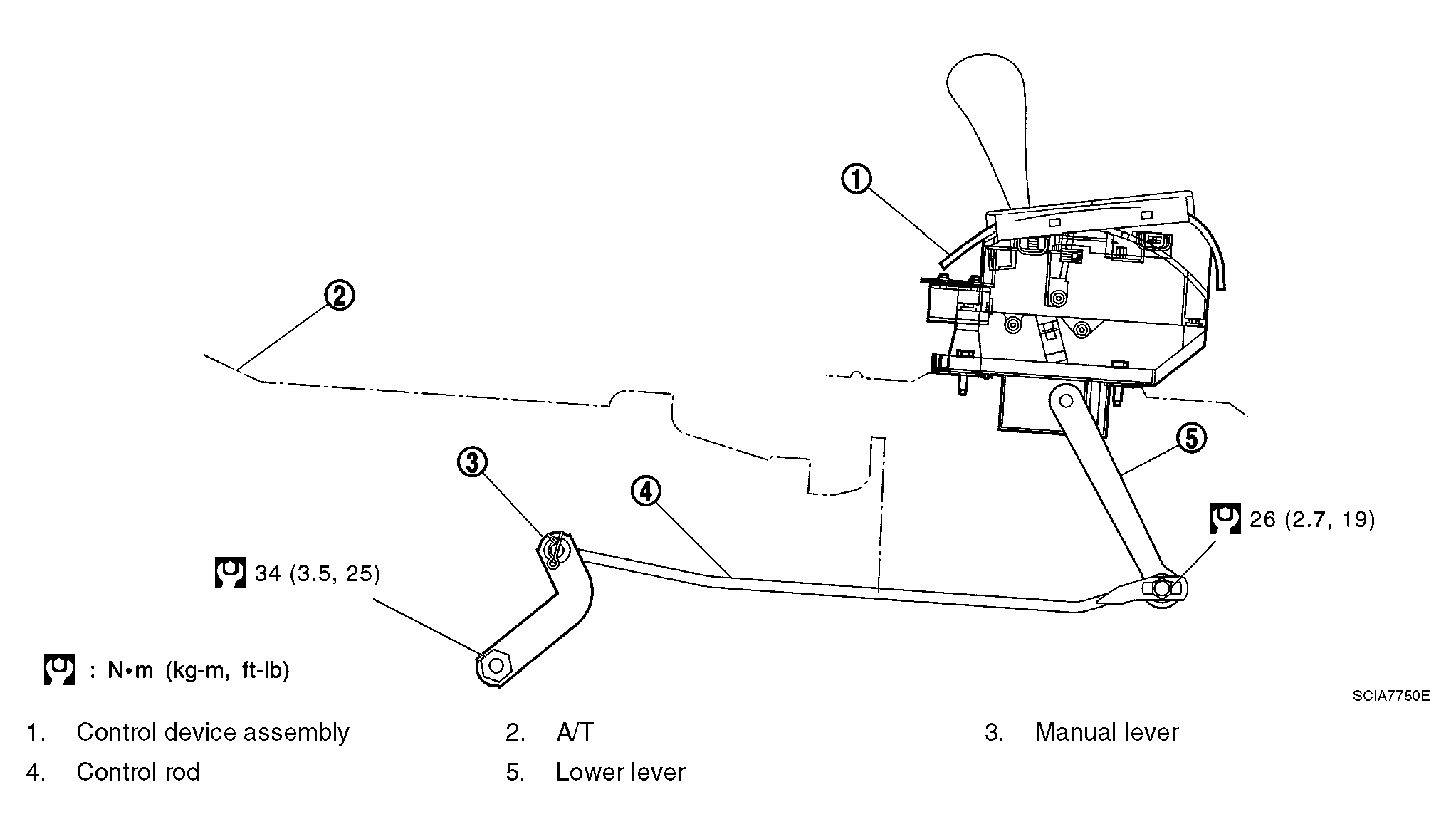

Fig 1: Control Rod Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
