Removal and Installation: Components

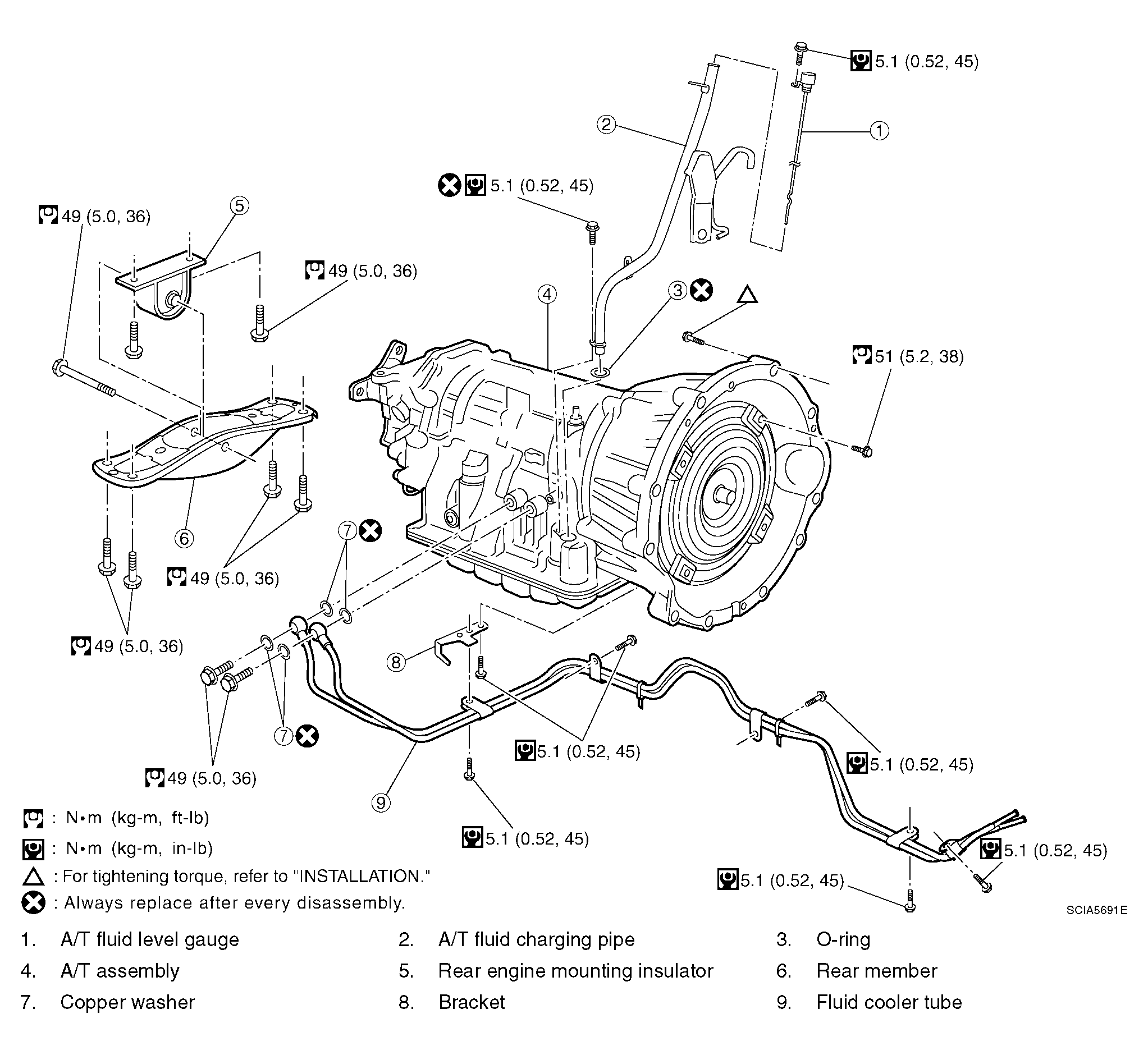

Fig 1: Transmission Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
