EVAP Canister

Tighten EVAP canister as shown in the figure.

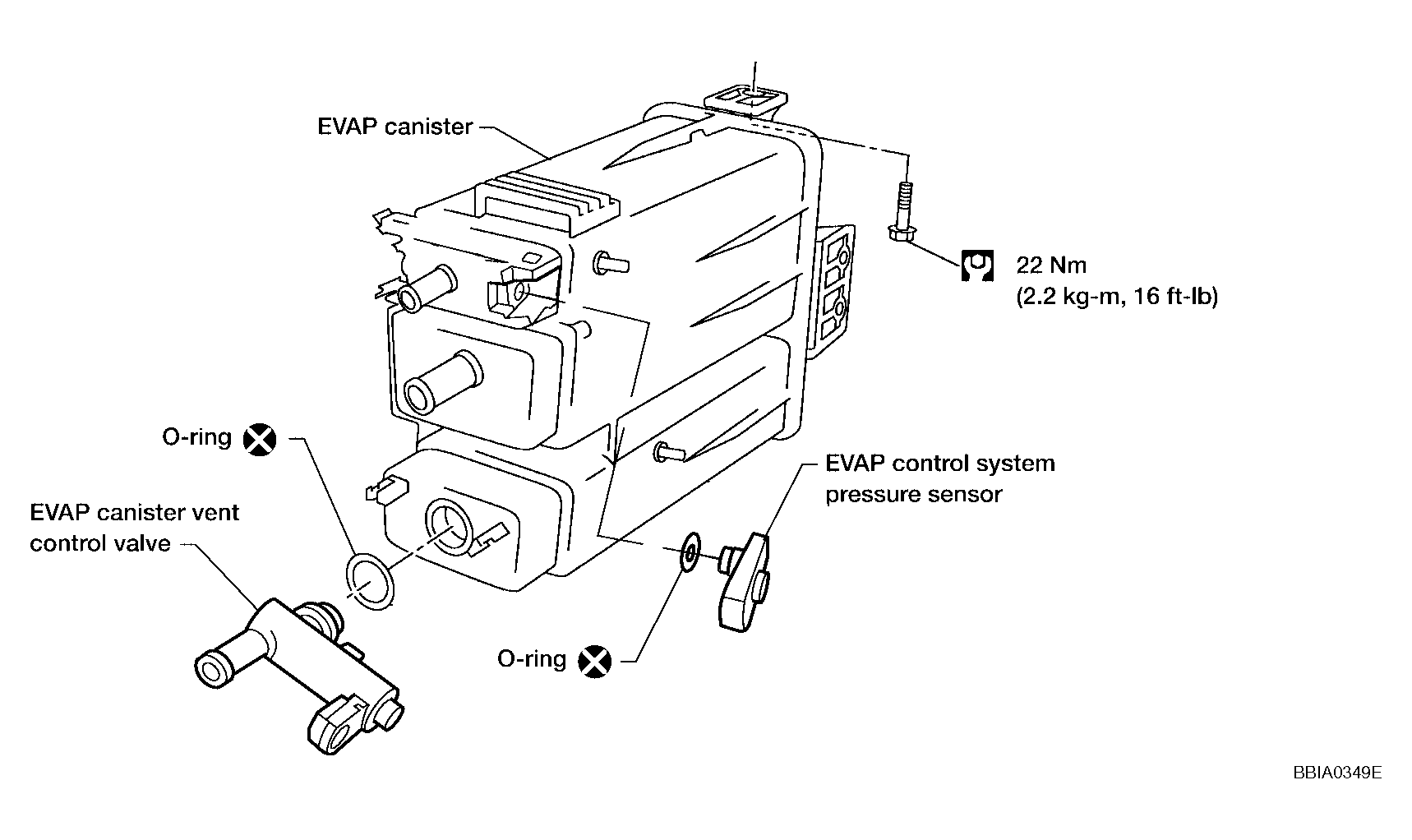

Fig 1: Replacement Components With Torque Specifications Of EVAP Canister With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

: N-.m (kg-m, in-lb)
