Direct Clutch: Assembly

  1. Install drive plates, driven plates and retaining plate in direct clutch drum.
    CAUTION: Take care with the order of plates.

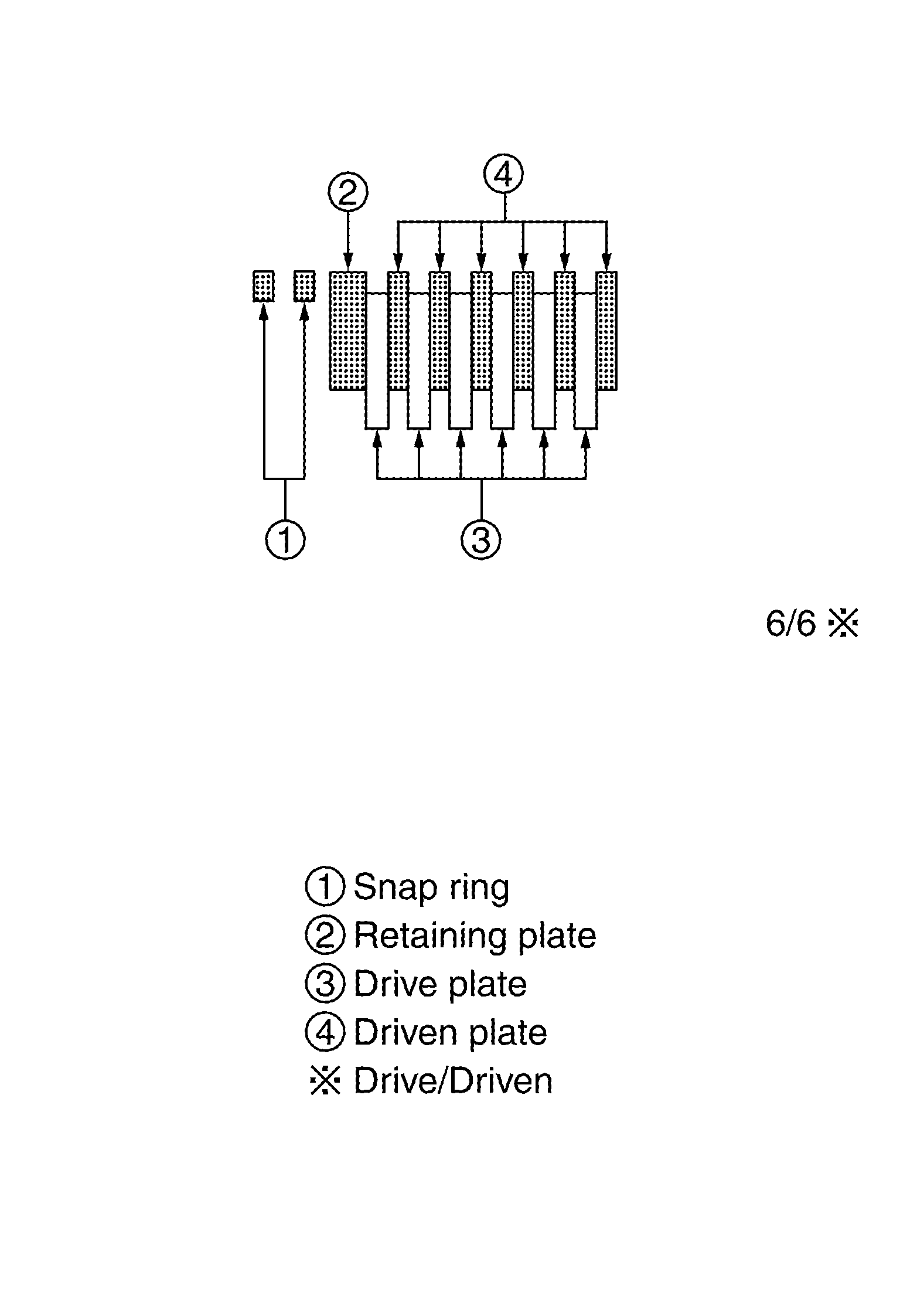

    Fig 1: Identifying Drive Plates, Driven Plates And Retaining Plate In Direct Clutch Drum
    G04133791Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install snap rings in direct clutch drum using suitable tool.
    Fig 2: Identifying Direct Clutch Drum Snap Ring
    G04075903Courtesy of NISSAN MOTOR CO., U.S.A.
