Rear Case

Remove the rear case bolts.

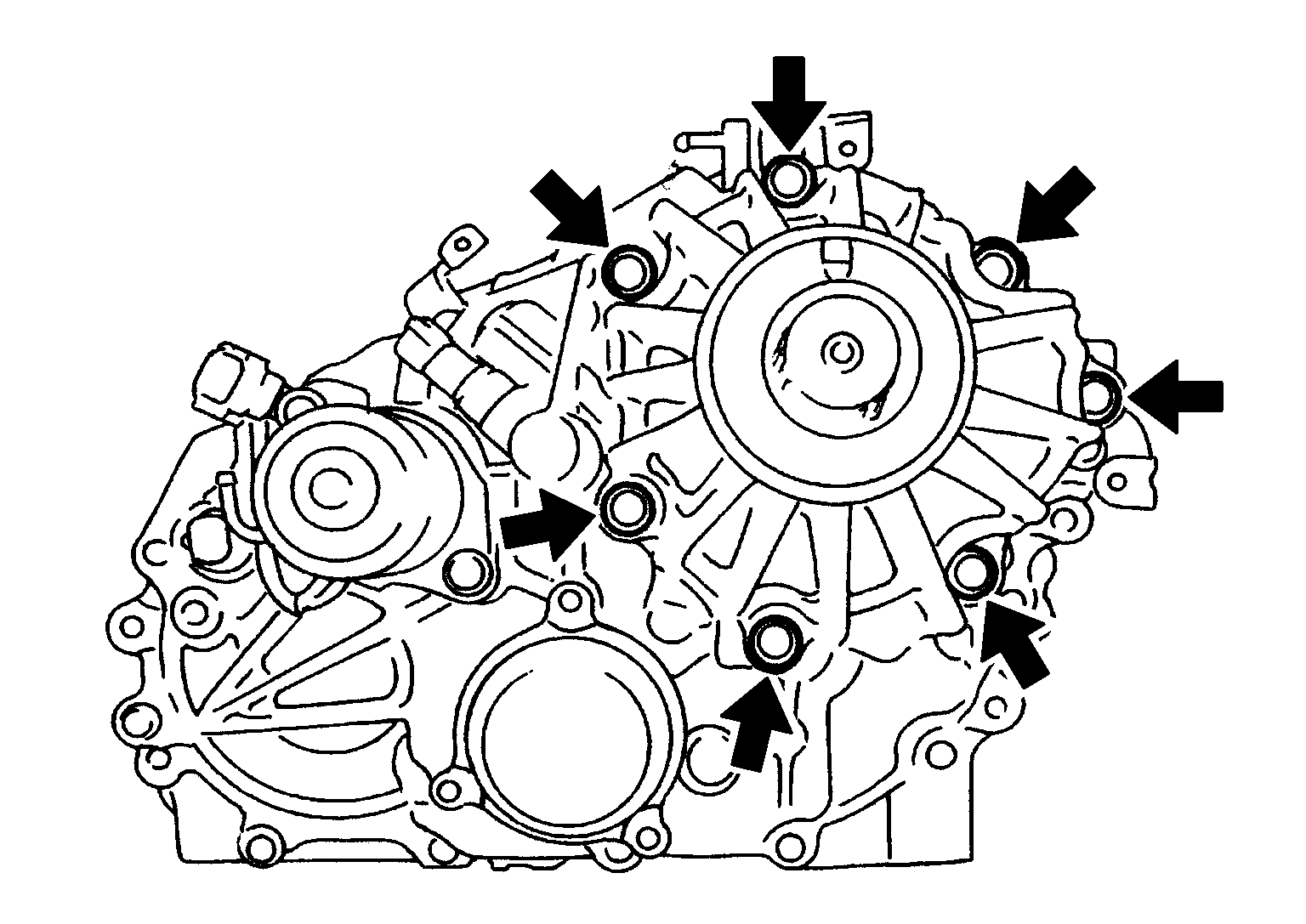

Fig 1: Identifying Rear Case Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear case from the center case.

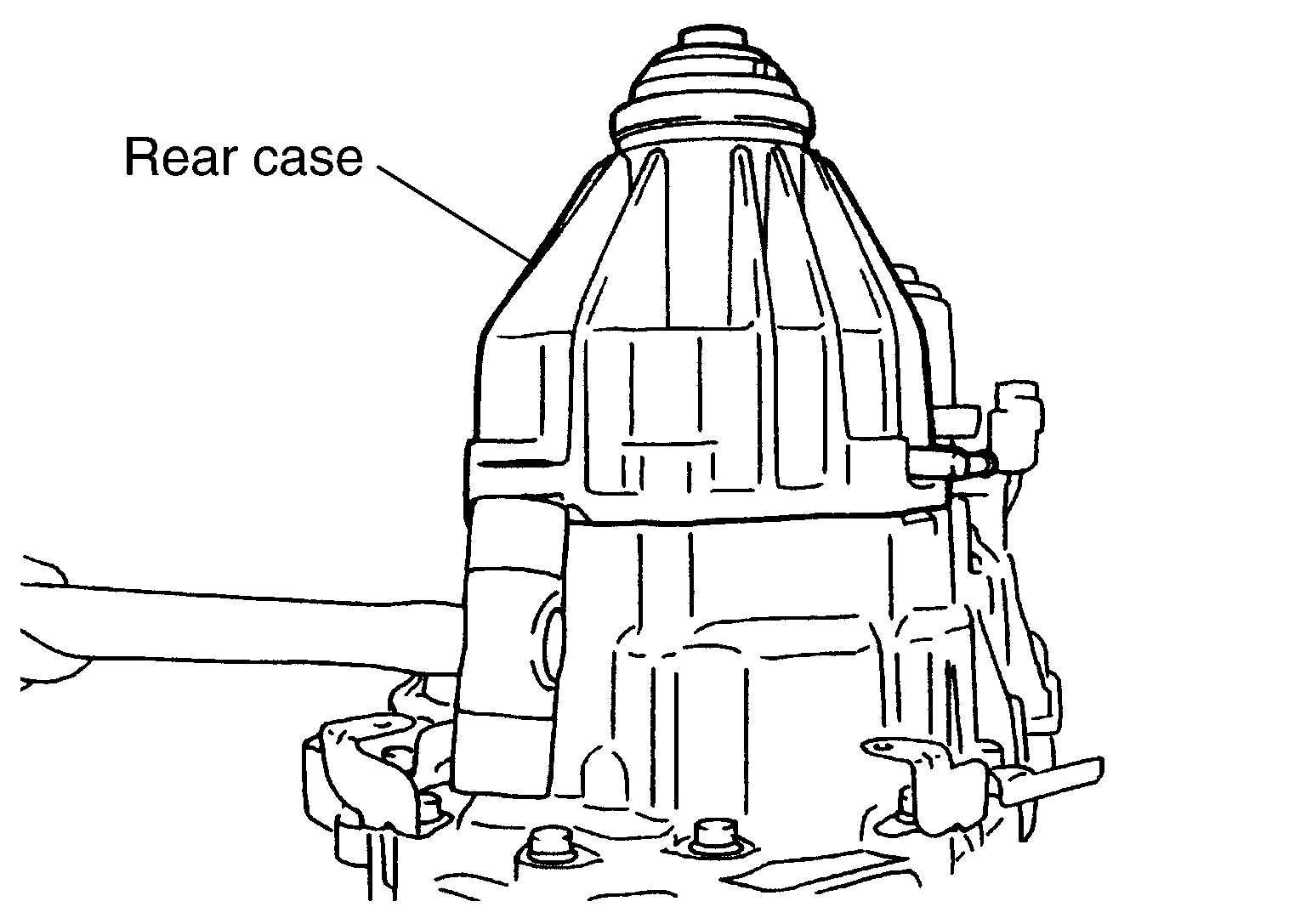

Fig 2: Identifying Rear Case From Center Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the dust cover using suitable tool.

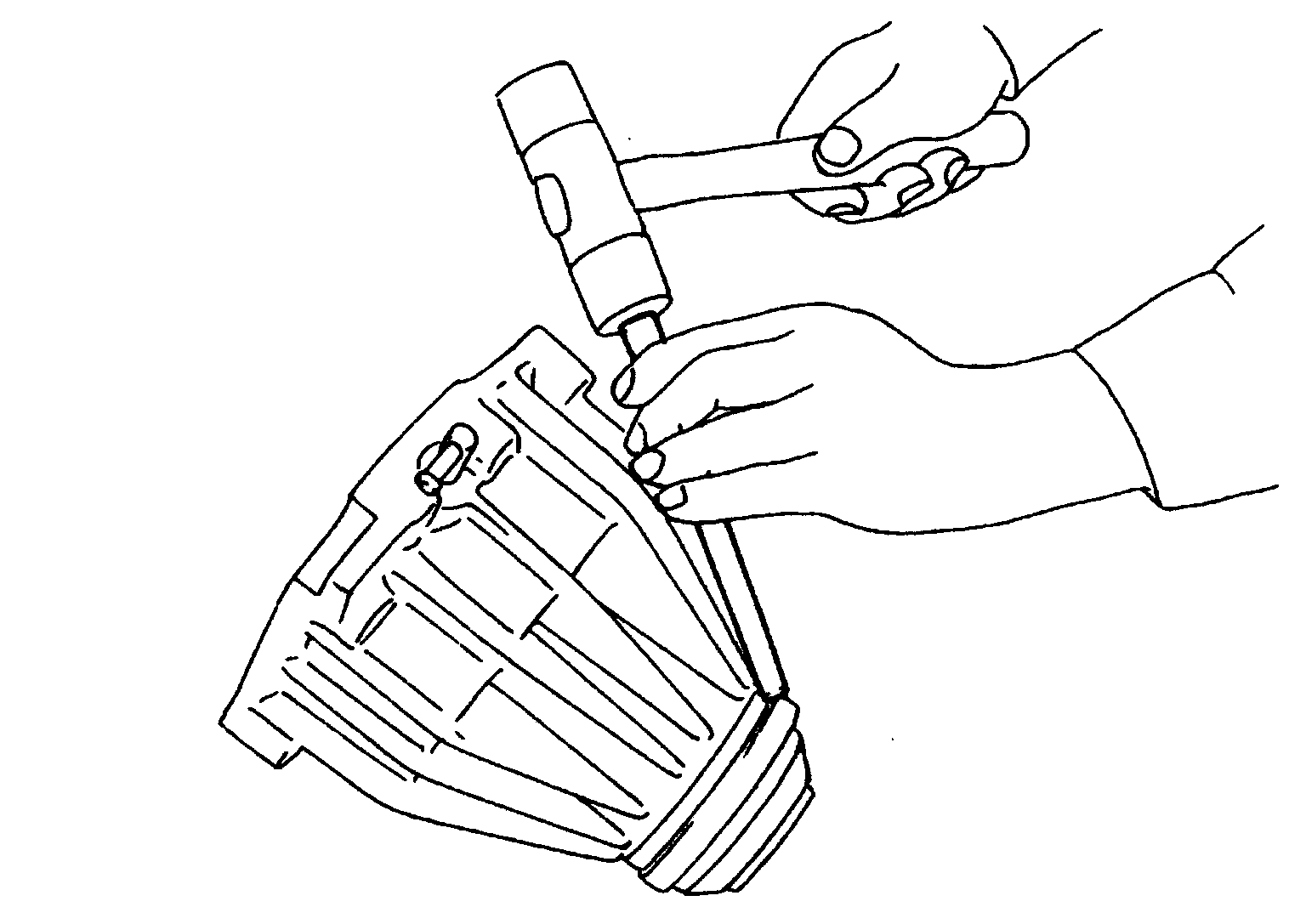

Fig 3: Removing Dust Cover Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear oil seal using suitable tool.
CAUTION: Do not damage rear case.
Remove the breather tube.

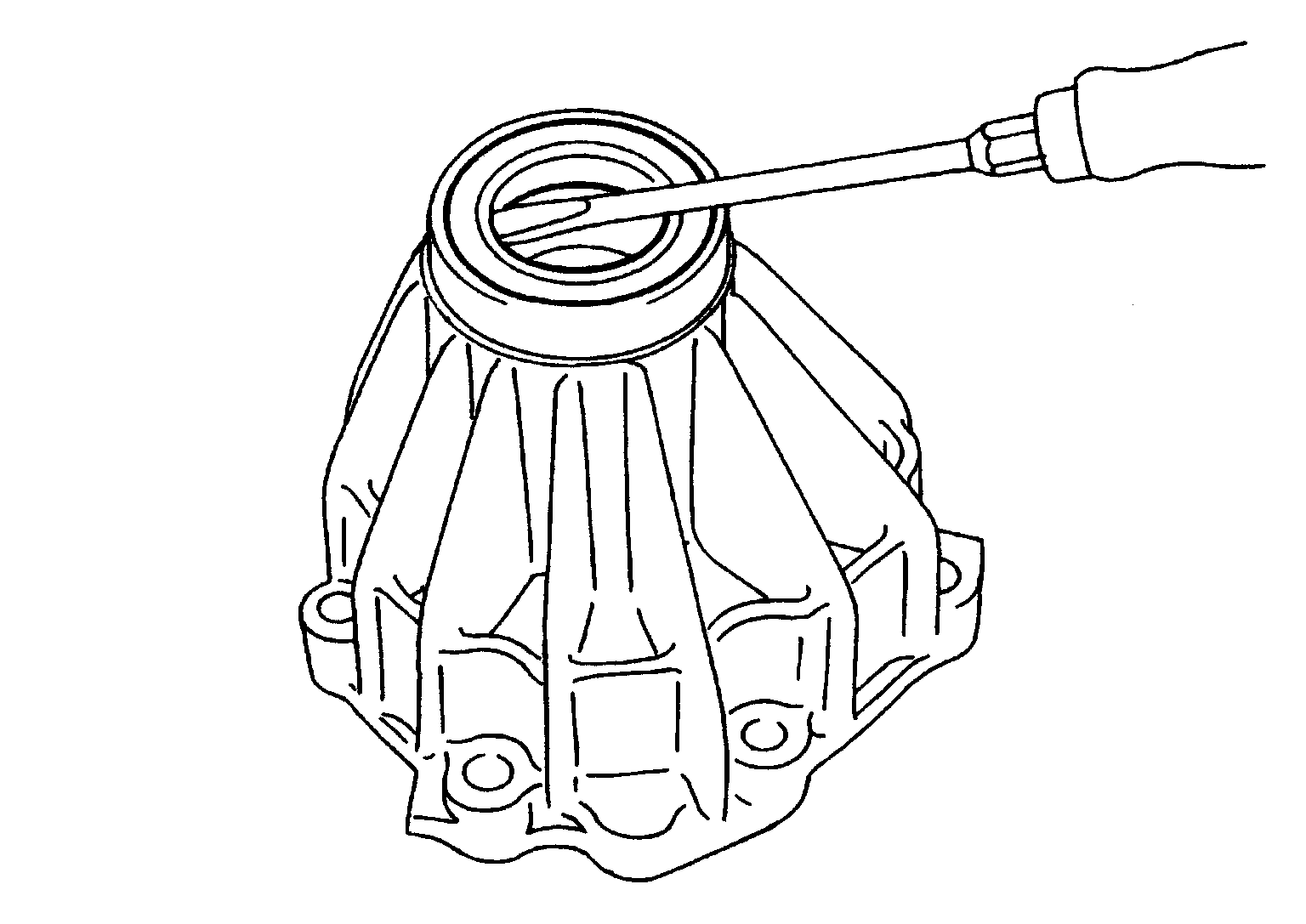

Fig 4: Identifying Rear Oil Seal Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
