Removal and Installation

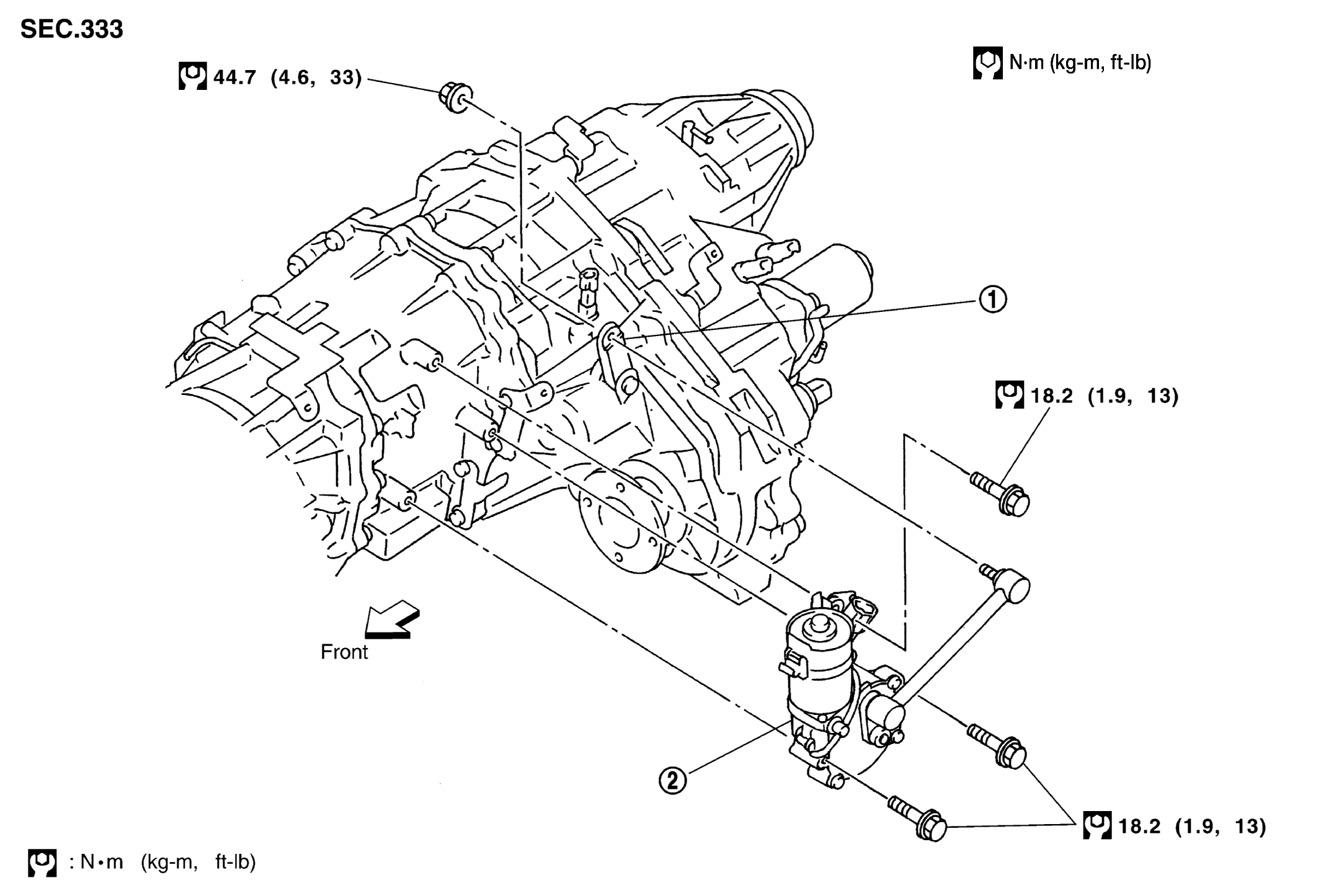

Fig 1: Transfer Control Device With Torque Specifications

G04134083

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Change vehicle state to 2WD, and then remove and install transfer control device.
Check 4WD shift indicator after installation. Refer to "PRECAUTIONS FOR TRANSFER ASSEMBLY AND TRANSFER CONTROL UNIT REPLACEMENT ".
