Transfer Fluid: Replacement: Filling
- Remove the filler plug and gasket.

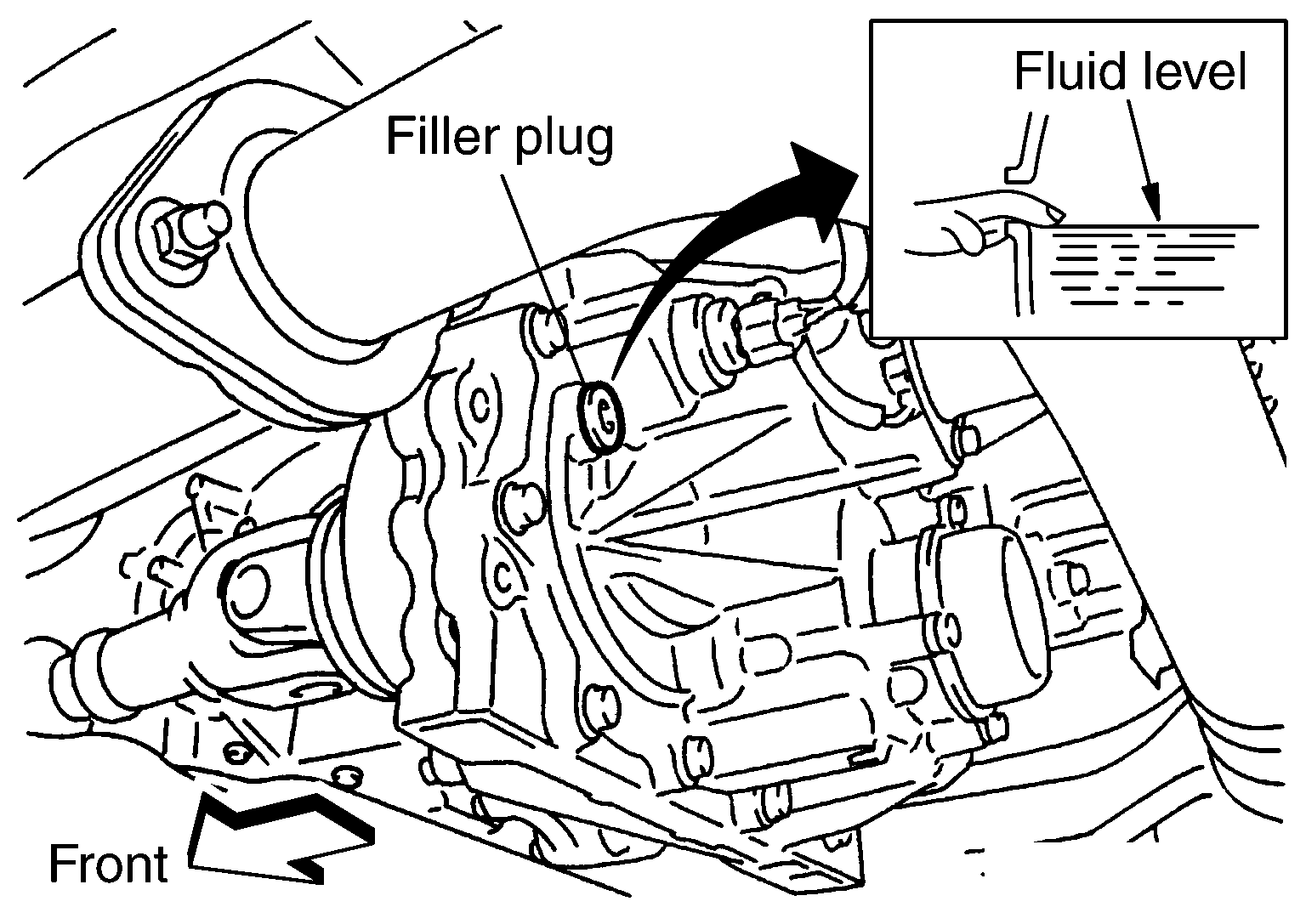

- Fill with new specified fluid until the fluid level reaches the specified limit near the filler plug hole as shown.
Fluid capacity and grade : Refer to " FLUIDS AND LUBRICANTS " .
CAUTION: Carefully fill the transfer with fluid. Filling should take approximately three minutes. - Leave the vehicle for three minutes and then check the fluid level again as shown.
- Install the new gasket on the filler plug and install the filler plug in the transfer. Tighten the filler plug to specification.
Filler plug : Refer to " COMPONENTS " .
CAUTION: Do not reuse the gasket.
