Engine Control System - Introduction
›
Basic Service Procedure
›
Fuel Pressure Check
›
Fuel Pressure Release
›
Without CONSULT-II
Without CONSULT-II
Remove fuel pump fuse located in IPDM E/R.
Start engine.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF.
Reinstall fuel pump fuse after servicing fuel system.

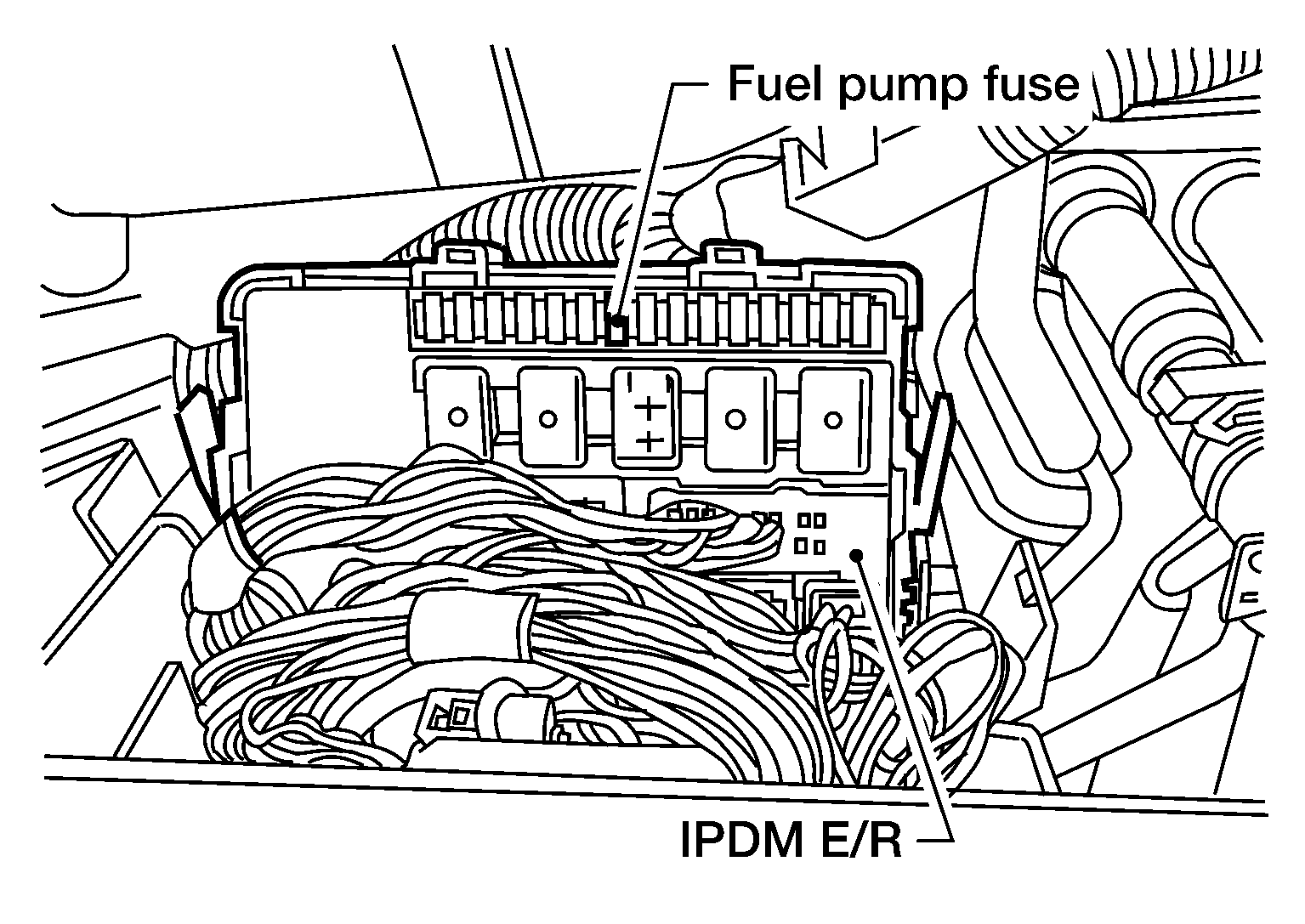

Fig 1: Identifying Fuel Pump Fuse Located In Fuse Box
Courtesy of NISSAN MOTOR CO., U.S.A.
