Intelligent Key System: Schematic

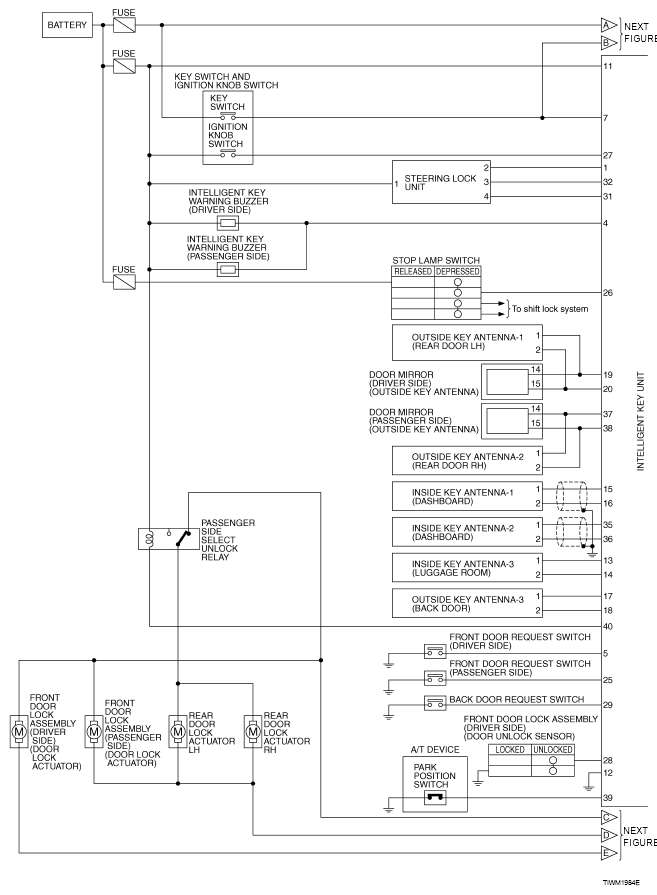

Fig 1: Identifying Schematic Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

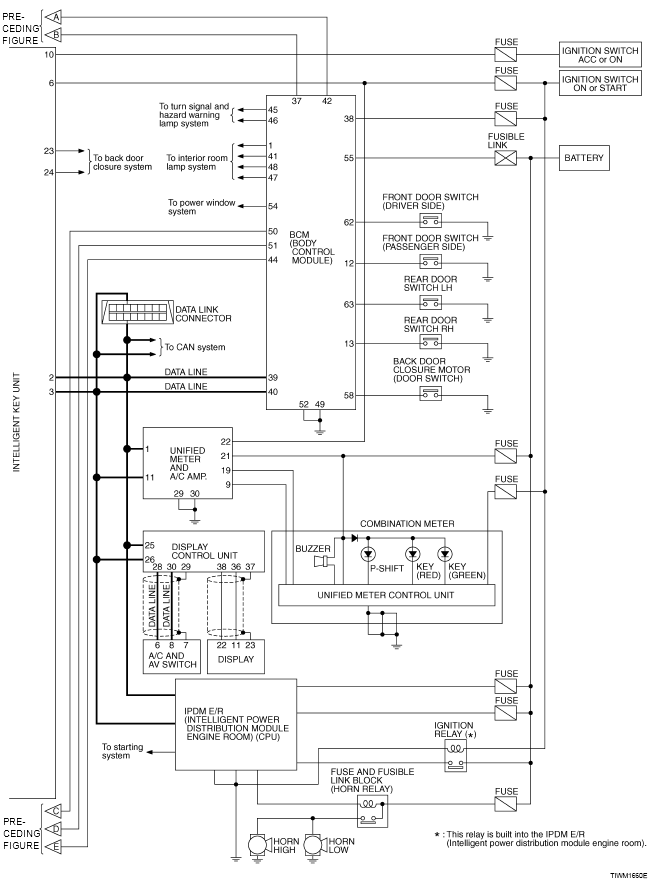

Fig 2: Identifying Schematic Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
