Notes
Removal and Installation: Notes

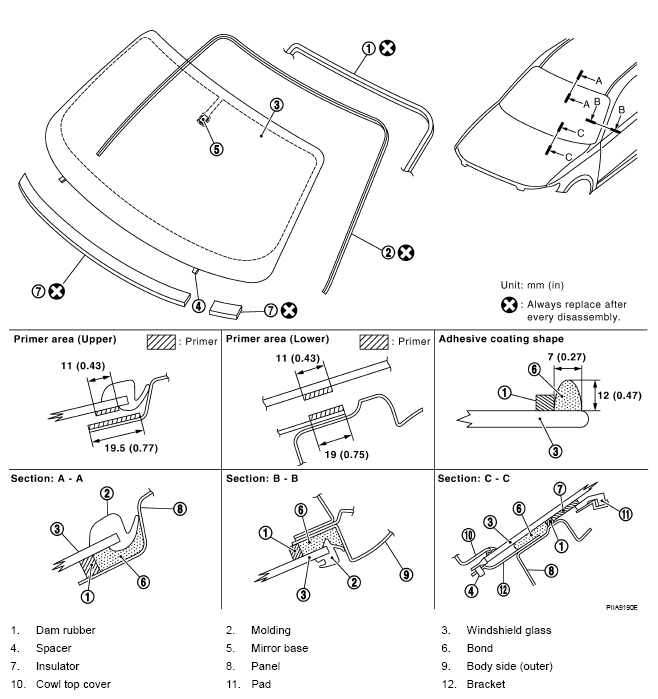

Fig 1: Identifying Windshield Glass Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
