ASCD Indicator: Wiring Diagram

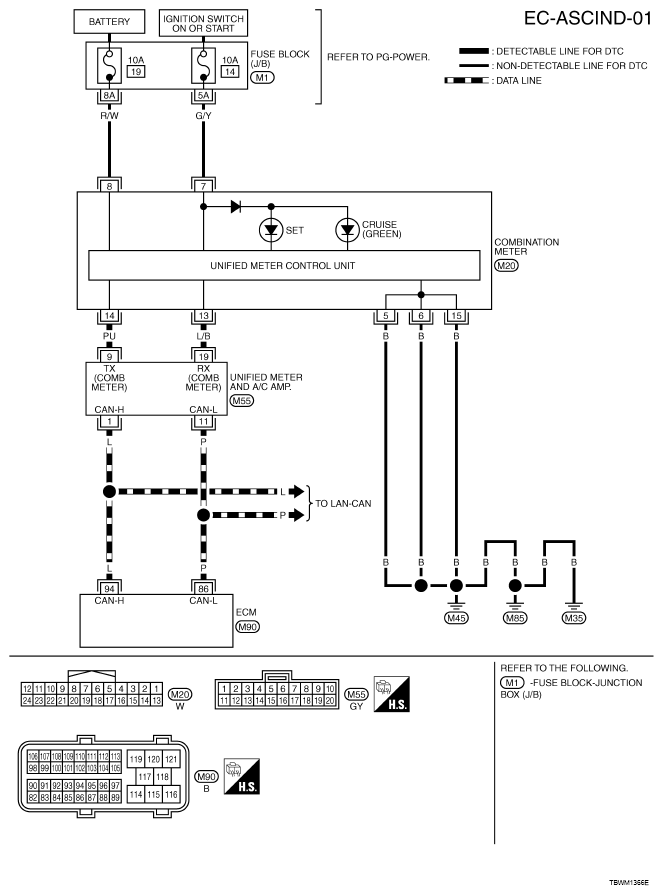

Fig 1: ASCD Indicator - Wiring Diagram
G05217793Courtesy of NISSAN NORTH AMERICA, INC.
