Snow Mode Switch: Wiring Diagram

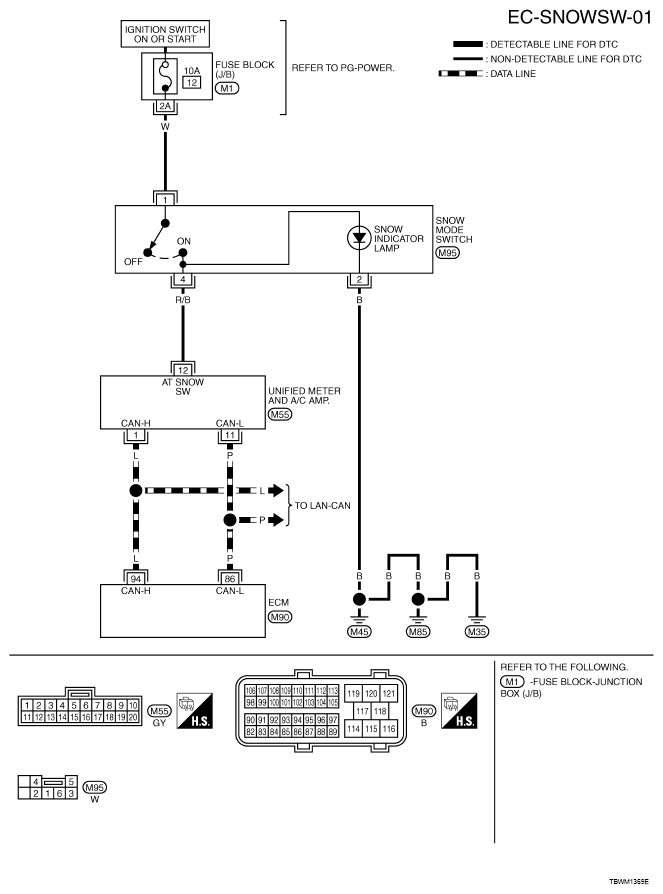

Fig 1: Snow Mode Switch - Wiring Diagram
G05217857Courtesy of NISSAN NORTH AMERICA, INC.
