Hydraulic Line: Components

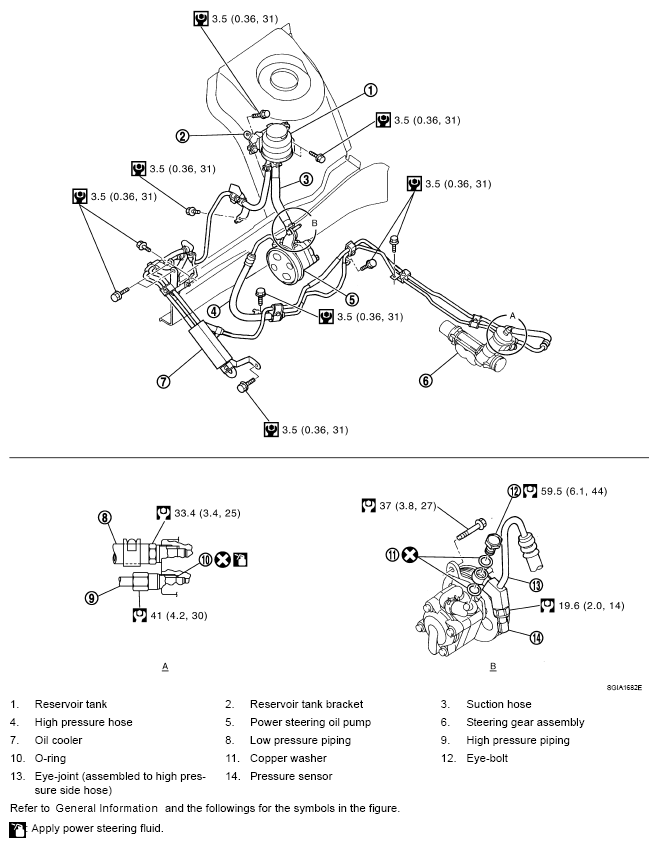

Fig 1: Identifying Hydraulic Line Components (VQ35DE 2WD Model)

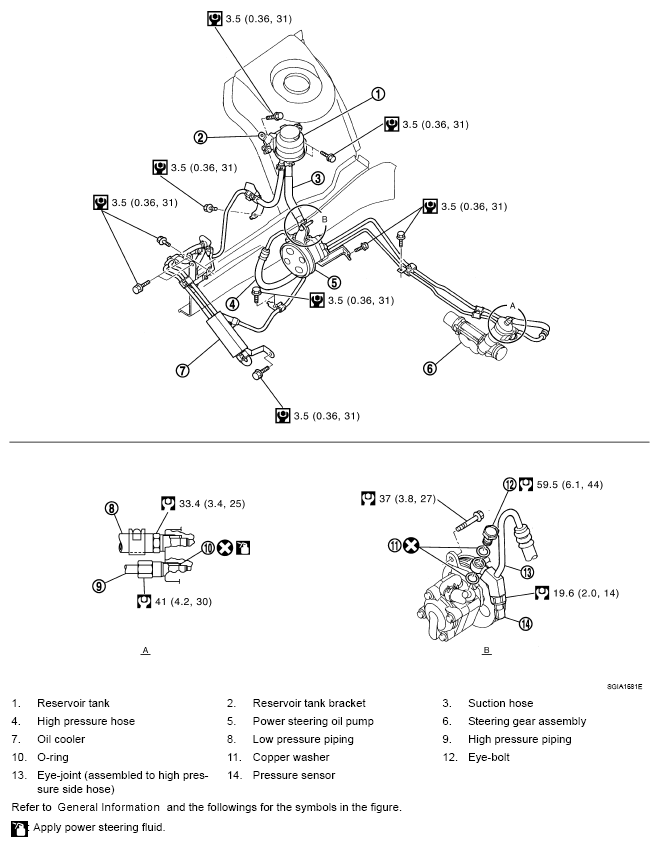

Fig 2: Identifying Hydraulic Line Components (VQ35DE AWD Model)

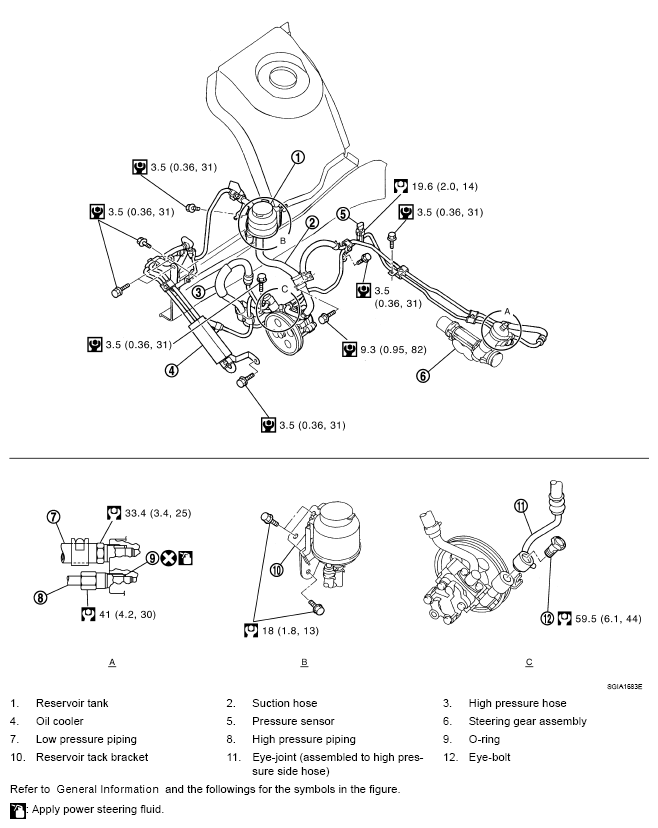

Fig 3: Identifying Hydraulic Line Components (VQ45DE AWD Model)
