Clutch And Band Chart

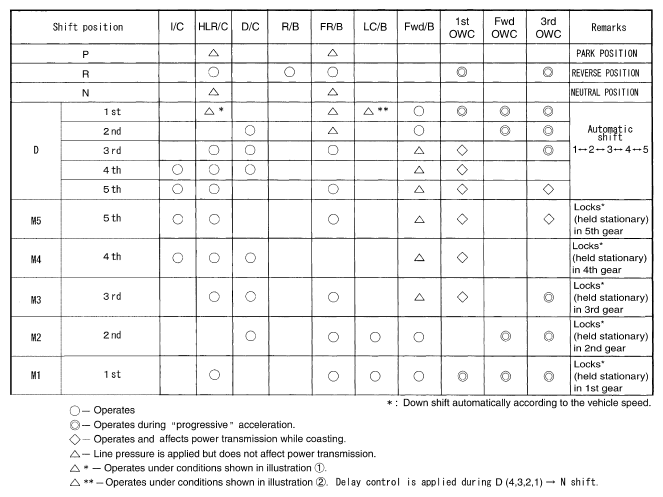

Fig 1: Identifying A/T Control System Clutch And Band Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Vehicle Speed Throttle Opening Operation Condition
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
