Control Valve And TCM Assembly Removal And Installation: Installation

CAUTION: After completing installation, check A/T fluid leakage and A/F fluid level. Refer to "CHECKING A/T FLUID ".
  1. Connect TCM connector and park/neutral position switch connector.
    Fig 1: Identifying TCM Connector And Park/Neutral Position Switch Connector
    G04875922Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install A/T assembly harness connector from control valve with TCM.
    Fig 2: Identifying A/T Assembly Harness Connector
    G04875924Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Connect TCM connectors.
    Fig 3: Identifying TCM Connectors
    G04875920Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-ring in A/T assembly harness connector.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
    Fig 4: Identifying O-Ring In A/T Assembly Harness Connector
    G04875919Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install A/T fluid temperature sensor 2 to bracket.
    Fig 5: Identifying Bracket And A/T Fluid Temperature Sensor
    G04875918Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM, and then tighten A/T fluid temperature sensor 2 mounting bolt to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.
    Fig 6: Identifying A/T Fluid Temperature Sensor
    G04875917Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install control valve with TCM in transmission case.
    CAUTION:
    • Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.
    • Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
    • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
    Fig 7: Identifying A/T Assembly Harness Connector Of Control Valve With TCM
    G04875929Courtesy of NISSAN MOTOR CO., U.S.A.
    • Assemble it so that manual valve cutout is engaged with manual plate projection.
    Fig 8: Identifying Bolts For Control Valve With TCM
    G05218166Courtesy of NISSAN MOTOR CO., U.S.A.

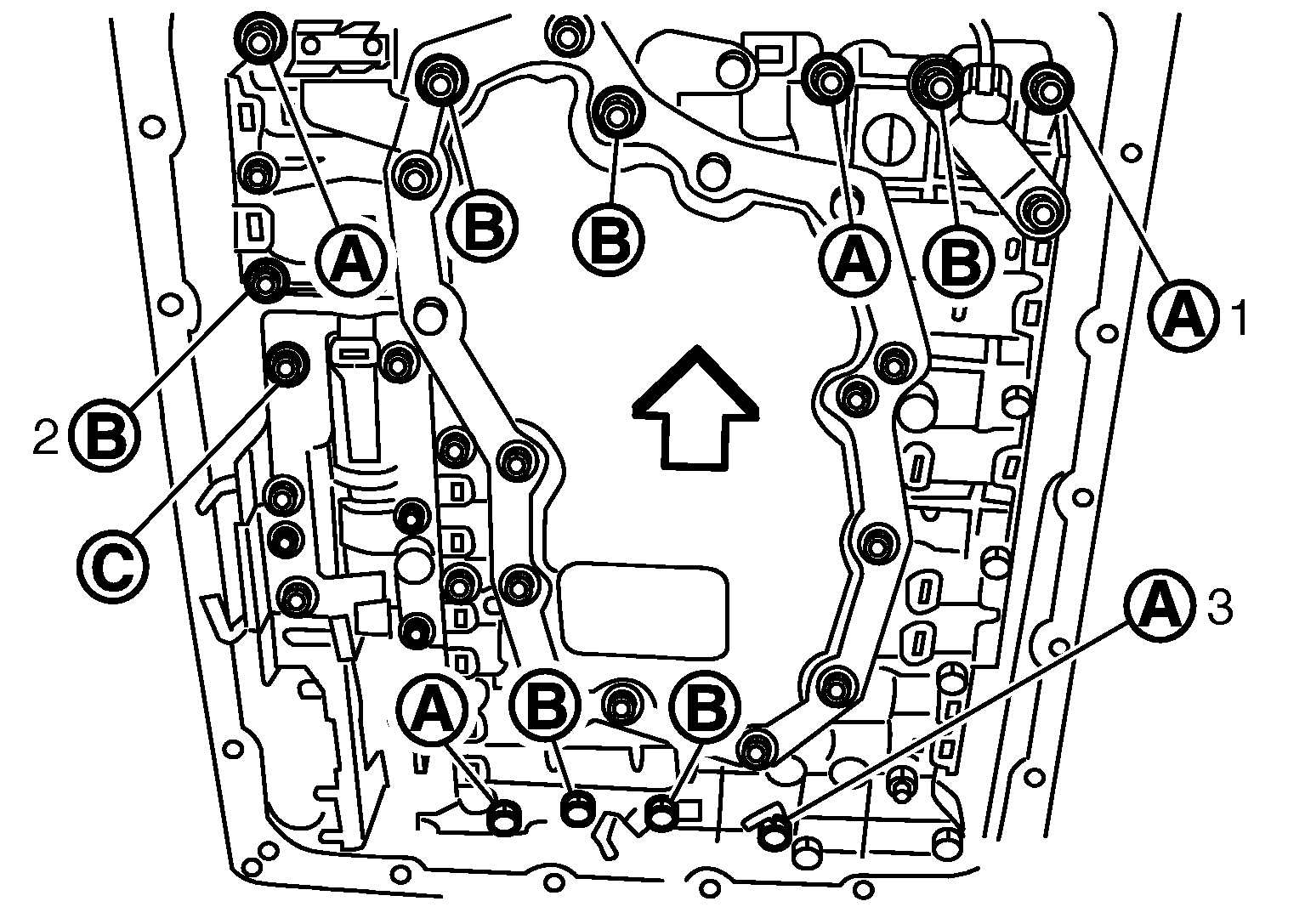

  8. Install bolts A, B and C in control valve with TCM.
    • →: Vehicle front
      • Fig 9: Identifying TCM Mounting Bolts Tightening Sequence
      G04875932Courtesy of NISSAN MOTOR CO., U.S.A.
    LENGTH SPECIFICATION

    Bolt symbol Length mm (in) Number of bolts
    A 42 (1.65) 5
    B 55 (2.17) 6
    C 40 (1.57) 1
  9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 → 2 → 3), and then tighten other bolts to the specified torque. Refer to "COMPONENTS ".
    • →: Vehicle front
    Fig 10: Identifying Manual Valve And Manual Plate
    G05218168Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect A/T fluid temperature sensor 2 connector (1).
    11. Fig 11: Locating A/T Fluid Temperature Sensor Connector
    G05218148Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips (<--icon-->).
  12. Connect revolution sensor connector.
    Fig 12: Identifying Revolution Sensor Connector
    G04875913Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Securely fasten revolution sensor harness with terminal clip.
    Fig 13: Identifying Terminal Clip And Revolution Sensor Connector
    G04875914Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install magnets in oil pan.
    Fig 14: Identifying Magnets In Oil Pan
    G04875911Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install oil pan to transmission case.
    1. Install oil pan gasket to oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
    2. Install oil pan (3) (with oil pan gasket), clips (2) and brackets (1) (VK45DE) to transmission case.
      • →: Vehicle front
      • →: Bolt (22)
      CAUTION:
      • Install it so that drain plug (4) comes to the position as shown in the figure.
        • Fig 15: Locating Bracket (VK45DE), Clips, Oil Pan And Oil Pan Gasket
        G05218145Courtesy of NISSAN MOTOR CO., U.S.A.
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Refer to "COMPONENTS ".
      CAUTION: Do not reuse oil pan mounting bolts.
  16. Install drain plug to oil pan, and then tighten drain plug to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse drain plug gasket.
    Fig 16: Identifying Oil Pan Bolts Tightening Sequence
    G04875938Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Pull up A/T assembly harness connector.
    CAUTION: Be careful not to damage connector.
    Fig 17: Identifying A/T Assembly Harness Connector
    G04875939Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Install snap ring to A/T assembly harness connector.
  19. Connect A/T assembly harness connector.
    20. Fig 18: Identifying A/T Assembly Harness Connector And Snap Ring
    G04875940Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Connect heated oxygen sensor 2 harness connector.
  21. Install front cross bar. Refer to "REMOVAL AND INSTALLATION ".
  22. Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".
  23. Connect the battery cable to the negative terminal.
