Direct Clutch: Components

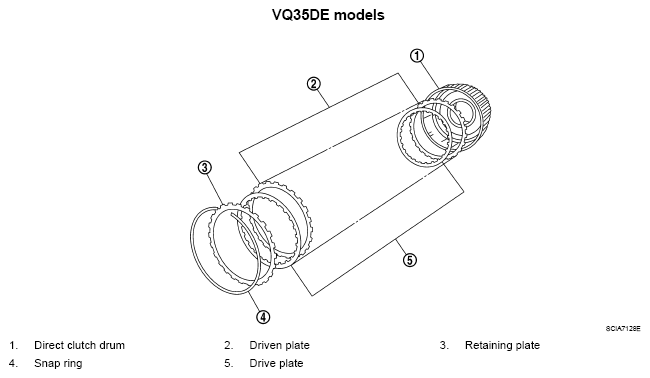

Fig 1: Identifying Direct Clutch Components (VQ35DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

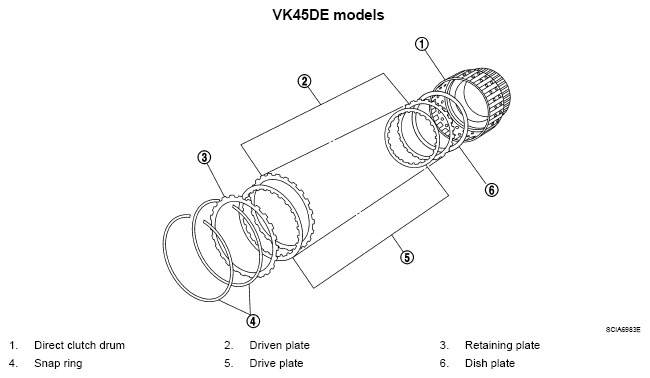

Fig 2: Identifying Direct Clutch Components (VK45DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
