Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

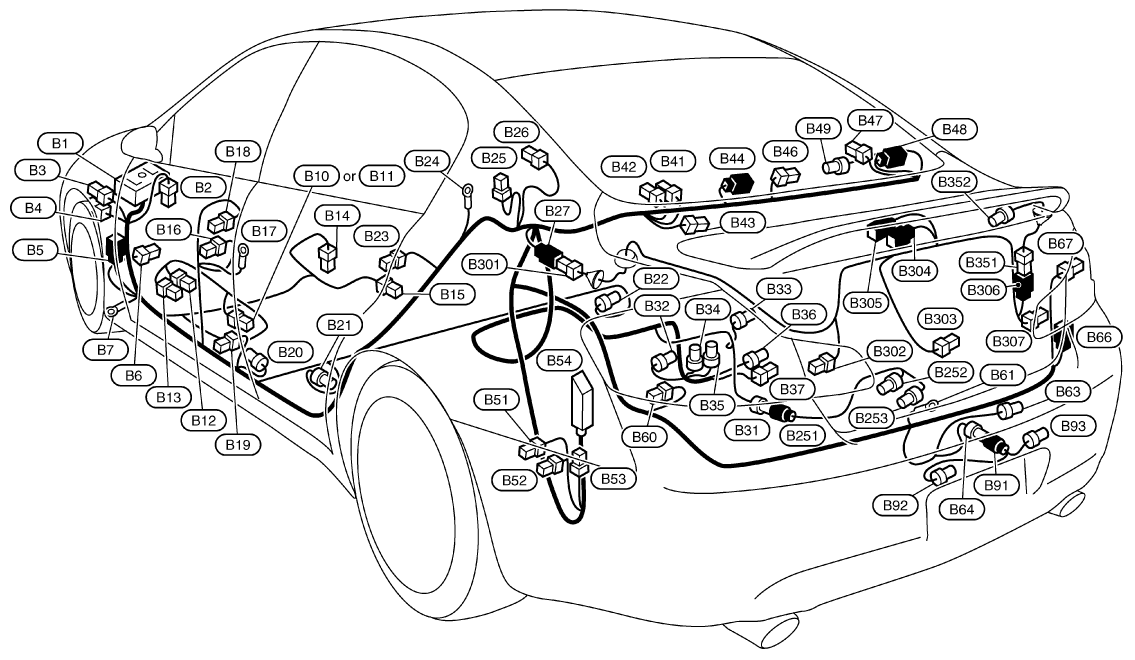

| Fuse Block (J/B) (B6) | Behind left kick panel. See Figure. |

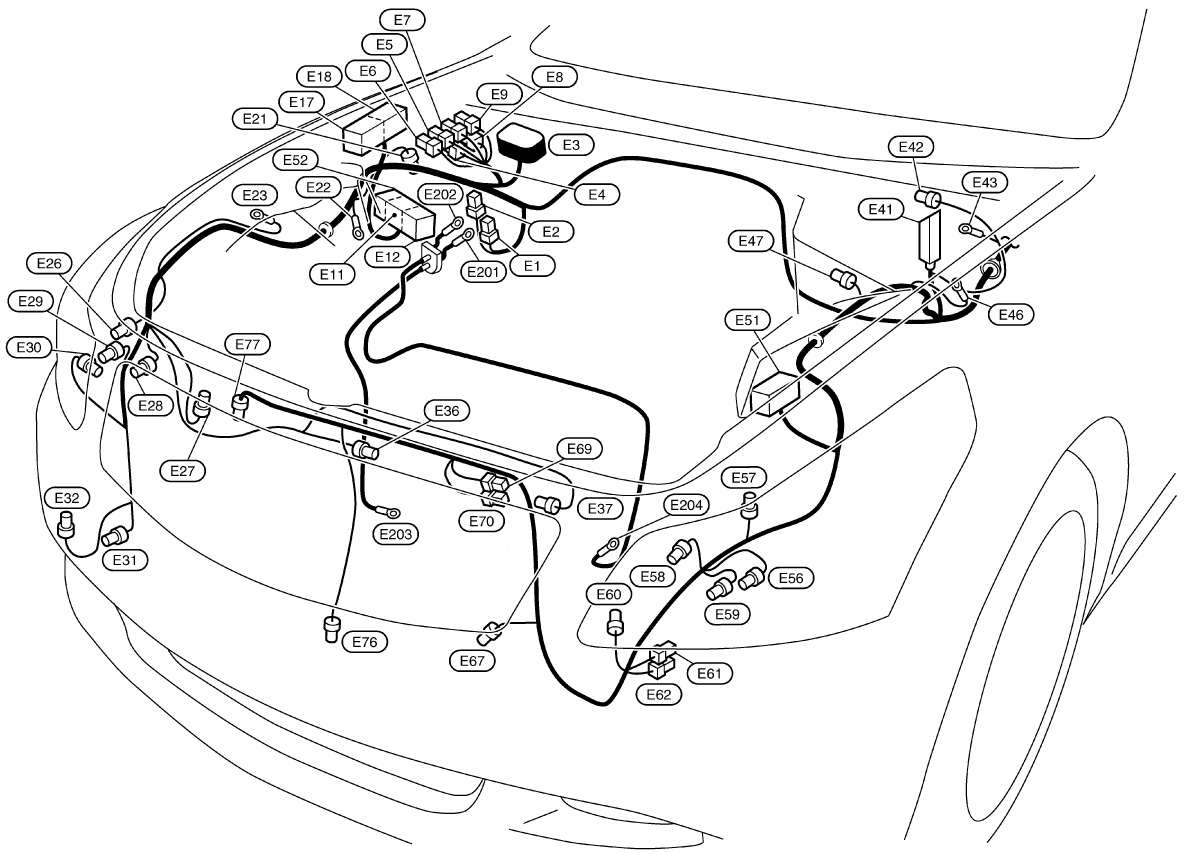

| Fuse, Fusible Link & Relay Box (E12) | Right rear of engine compartment. See Figure. |
| Fusible Link Holder (E1) | Right rear of engine compartment. See Figure. |

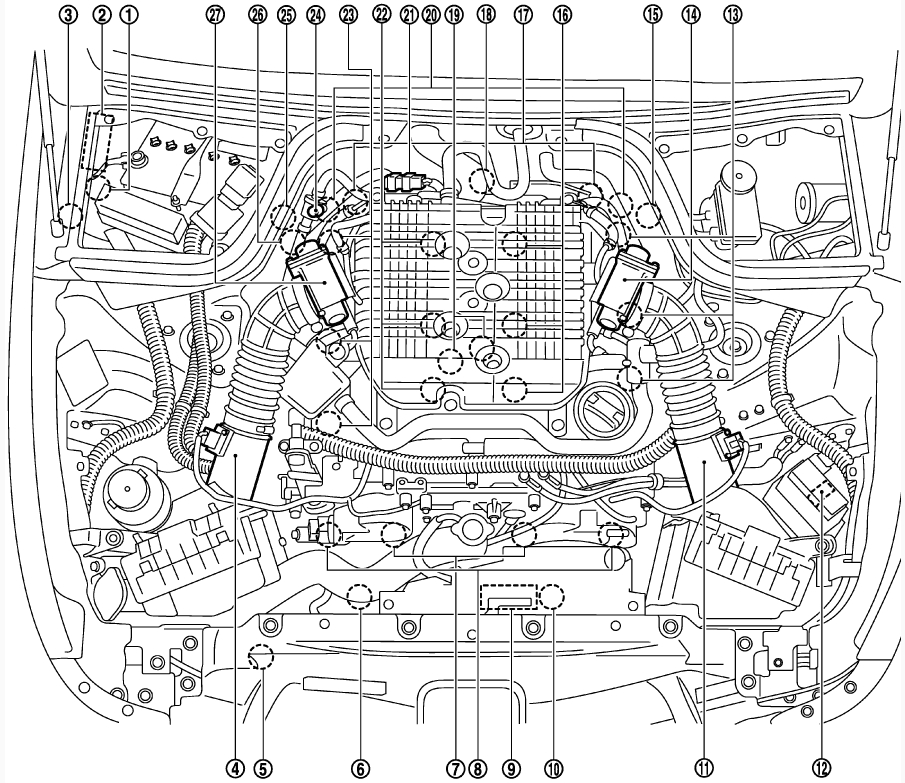

| IPDM E/R (Intelligent Power Distribution Module Engine Room) (2) | Right rear of engine compartment. See Figure. |
