Control Units
CONTROL UNITS LOCATION

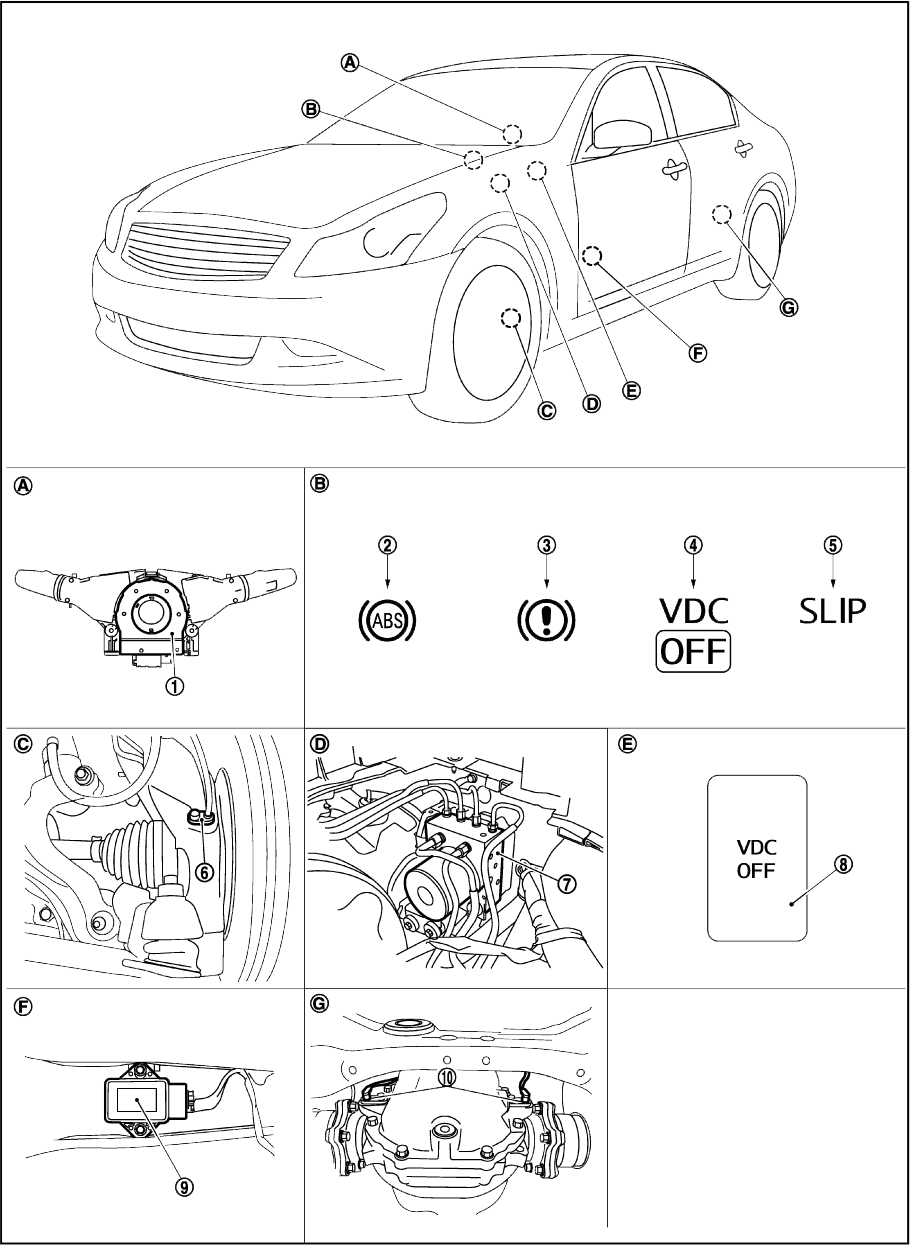

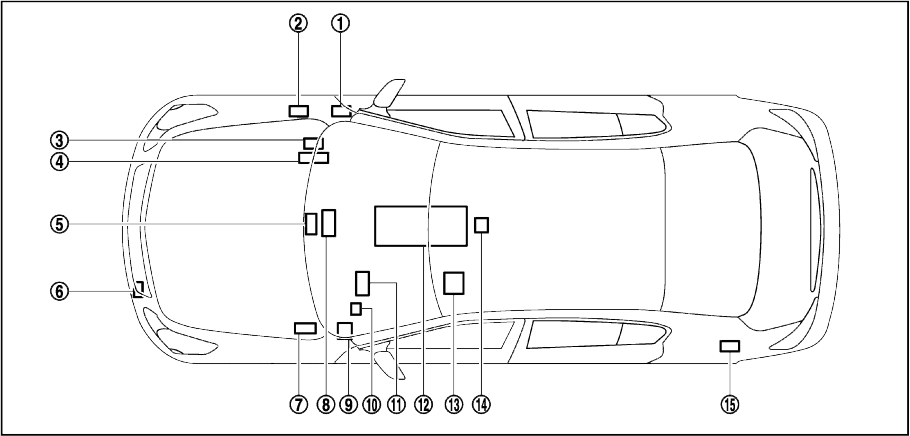

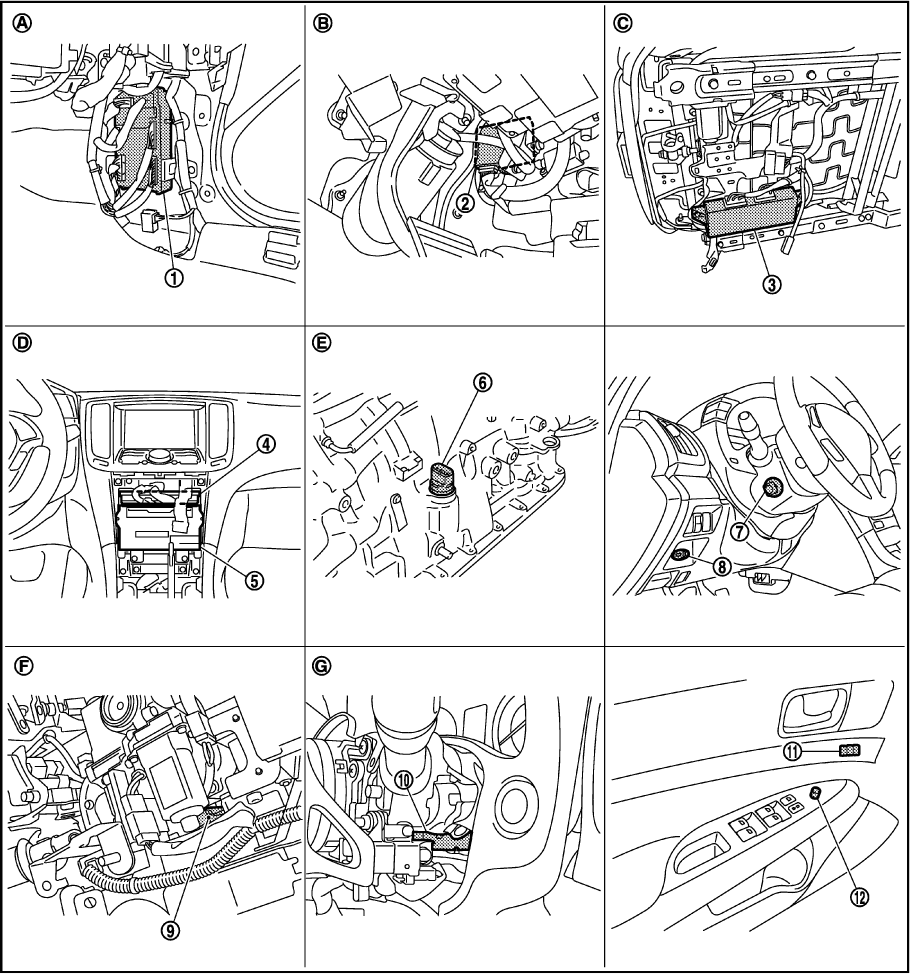

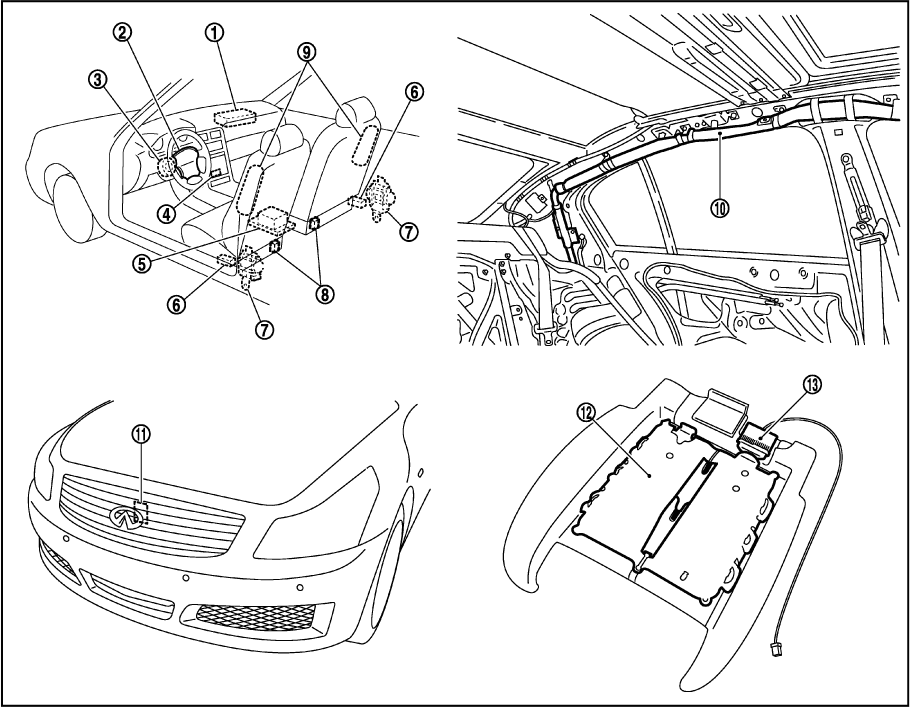

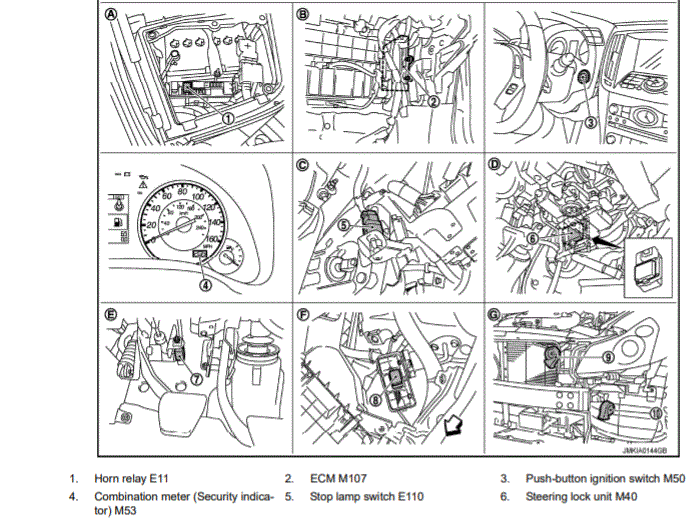

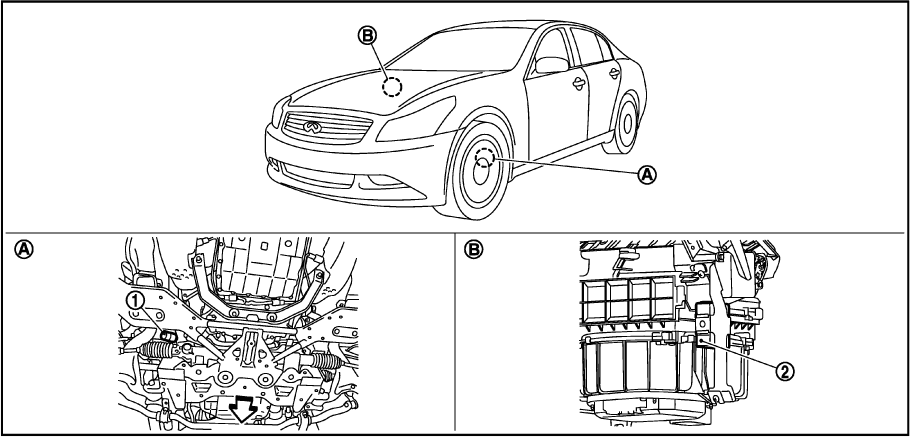

| Component | Location |
|---|---|
| ABS Actuator And Electric Unit (Control Unit) (7) | Near brake master cylinder. See Figure. |
| AFS Control Unit (9) | Behind left end of dash. See Figure. |
| Automatic Drive Positioner Control Unit (2) | Under left side of dash. See Figure. |
| AV Control Unit (8) | Behind center of dash. See Figure. |
| AWD Control Unit (AWD) | Behind right end of dash. See Figure. |
| BCM (Body Control Module) (1) | Behind left kick panel. See Figure. |
| Cooling Fan Control Module (9) | Front of engine compartment. See Figure. |
| Diagnosis Sensor Unit (ACU) (5) | Under center console. See Figure. |
| Driver Seat Control Unit (3) | Under driver seat. See Figure. |
| ECM (Engine Control Module) (4) | Behind right side of dash. See Figure. |
| ICC Sensor Integrated Unit (6) | Behind left side of front bumper. See Figure. |
| OCS Control Unit (13) | Rear of right front seat cushion. See Figure. |
| Power Steering Control Unit (2) | Behind right side of dash. See Figure. |
| Steering Lock Unit (6) | Under left side of dash. See Figure. |
| 4WAS Main Control Unit (15) | Left rear quarterpanel. See Figure. |
