Home › Infiniti › 2007 › M35 Base › Repair and Diagnosis › Body & Frame › Door Locks › Body, Lock & Security System › Front Door Lock › Component Structure

Component Structure

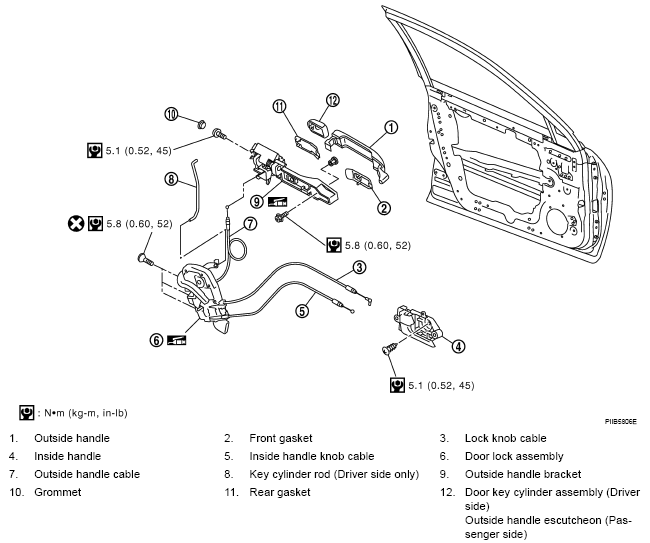

Fig 1: Front Door Lock Components With Torque Specifications
G05212378
