Removal and Installation: Component

Refer to COMPONENTS .

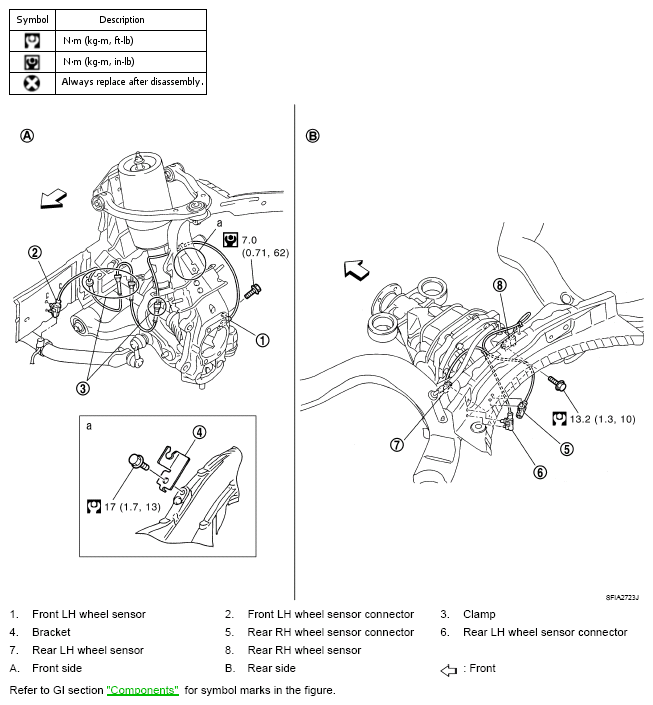

Fig 1: Wheel Sensor Replacement Components With Torque Specifications

NOTE: The above figure (front side) shows left side. Right side is the mirror image.
