Clutch And Band Chart

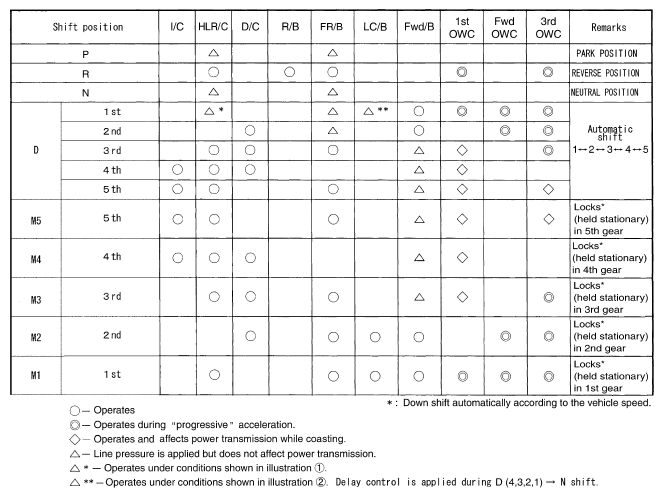

Fig 1: Clutch And Band Chart
G05213170
Fig 2: Identifying Vehicle Speed Throttle Opening Operation Condition
G05217909
