Removal And Installation: Components

Refer to COMPONENTS .

Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

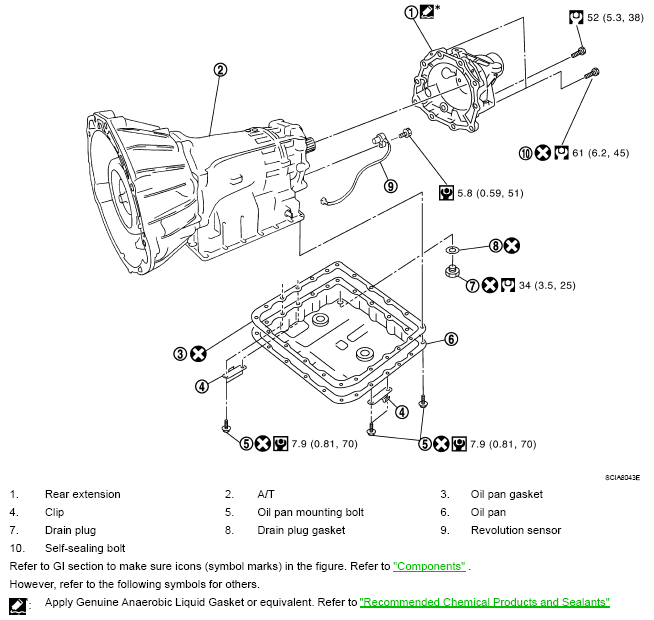

Fig 1: Revolution Sensor Replacement Components (2WD Models) With Torque Specifications

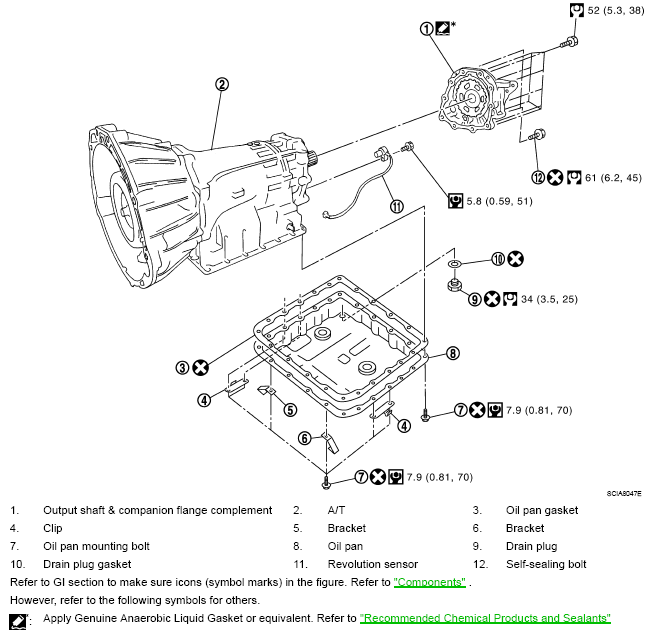

Fig 2: Revolution Sensor Replacement Components (VKD45DE Models) With Torque Specifications
