Oil Channel

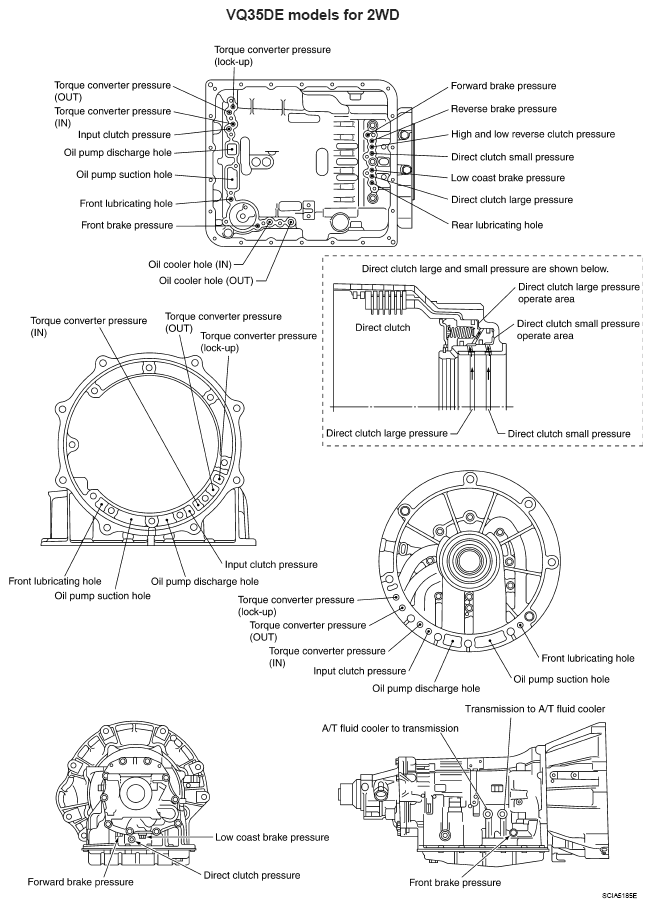

Fig 1: Exploded View Of Oil Channel Components (VQ35DE Models For 2WD)

G05213507

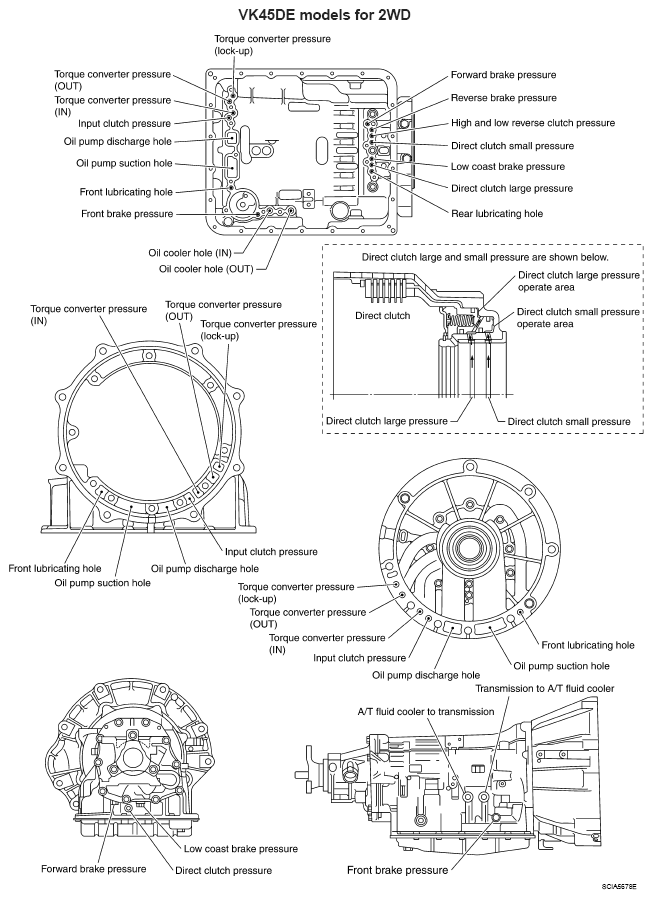

Fig 2: Exploded View Of Oil Channel Components (VK45DE Models For 2WD)

G05213508

Fig 3: Exploded View Of Oil Channel Components

G05213509
