Control Rod Components (2WD Models)

Refer to COMPONENTS .

Refer to the figure below for control rod removal and installation procedure.

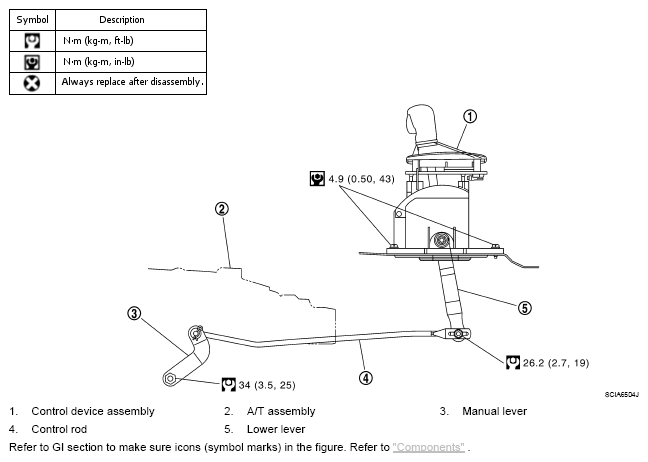

Fig 1: Control Rod Replacement Components (2WD Models) With Torque Specifications
